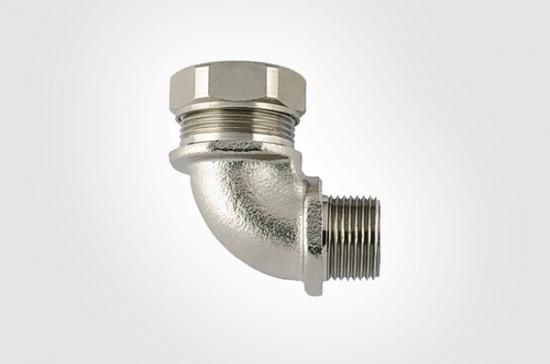

Multi-part stainless steel fitting (SS316) including elastomer seal. Can be used to attach the hose. Can be used for PSRSC hoses. 90° fitting made of corrosion-resistant stainless steel (SS316) with rigid external thread. Meets IP66, IP67, IP68 and IP69k with PSRSC hoses.
| Property | Value |
| Nominal size in inches: | other |
| With integrated holder: | no |
| Thread connection size: | M20 x 1.5 |
| Material of the screw connection: | Polyamide (PA) |
| Nominal diameter: | 16 mm |
| Design: | 90° angle |
| Rotatable thread: | no |
| Design: | external thread |
| Connection type: | thread |
| Thread length: | 13.0 mm |
| One-piece: | no |
| Seal material: | Polyamide (PA) |
| Smallest inner diameter of hose: | 10.7 mm |
| Total height: | 26 mm |
| Color: | other |
| Total length: | 46 mm |
| Protection class (IP): | IP68 |
Features
One-piece
No
Total height
26 mm
Smallest inner diameter of the hose
10.7 mm
HAB
PSRSC16-90FMCSS-M20 HelaGuard
Manufacturer
HAN
166-41401
GTIN
4031026411118
Version
90° angle
Design
External thread
Rotating thread
No
Color
Overall length
46 mm
Thread connection size
M20x1.5
Thread length
13.0 mm
Nominal diameter
16 mm
Nominal size in inches
Other
IP protection)
IP68
Connection type
Thread
