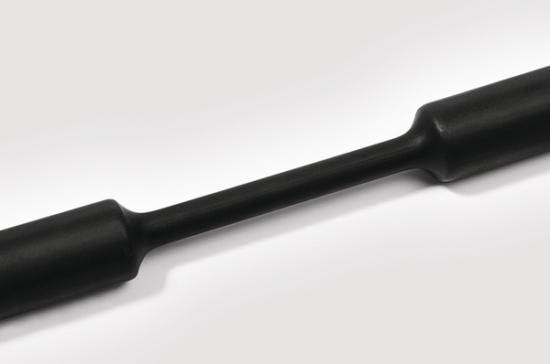

Thin-walled: flexible, lightweight, space-saving. Very good fire protection properties. Resistant to chemicals and solvents. Fast shrinking. Low shrinking temperature. TCN20 offers electrical protection for bare conductors, cable lugs and terminals, crimp and solder connections, pre-assembled cable harnesses, but also for non-voltage-carrying parts.
| Property | Value |
| Nominal diameter in inches: | 1/4 inch |
| Wall thickness after shrinking: | 0.55 mm |
| Inner diameter before shrinking: | 6.4 mm |
| Inner diameter after shrinking: | 3.2 mm |
| Length: | 300.0 m |
| Operating temperature: | -55 to 125 °C |
| Design: | thin-walled |
| Color: | black |
| Material: | Polyolefins (PO-X) |
| With inner adhesive: | no |
| Shrinkage ratio: | 2:1 |
| Printable: | no |
| UL approval: | yes |
| Halogen-free: | no |
| Type: | Heat shrink |
Features
HAB
TCN20-6.4/3.2-BK
Minimal order
300 meters
Manufacturer
HAN
300-73060
GTIN
4031026282763
Version
Thin-walled
Printable
No
Operating temperatur
-55 to 125 °C
Color
Halogen free
No
Inner diameter after shrinkage
3.2 mm
Inner diameter before shrinking
6.4 mm
Length
300.0m
With inner adhesive
No
Nominal diameter in inches
1/4 inch
Shrinkage rate
2:1
Type
Heat shrink
UL approval
Yes
Wall thickness after shrinkage
0.55 mm
Material
Polyolefins (PO-X)
