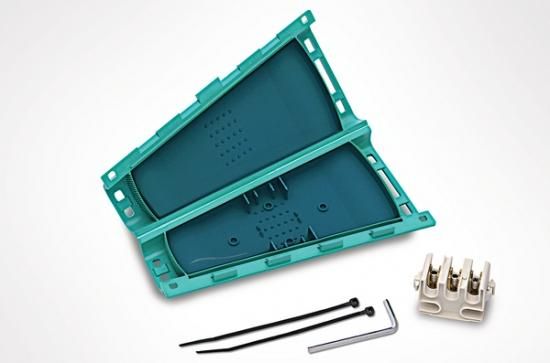

Moulded shell: one-piece, coloured, re-openable, impact-resistant, flame-retardantFilled with RELICON gel, highly insulating, label-freeNo mixing required, extremely easy to assembleUV-, aging- and weather-resistantUnlimited storage lifeWith connector blockReady for assemblySystem tested according to EN 50393 (corresponds to DIN0278-393) RELICON Relifix Gel technology offers several advantages. It is quick and easy to install. The moulded shells are provided with a film hinge and are made of thick-walled, tough and impact-resistant polypropylene (PP). The Relicon gel in the shells insulates and seals the entire connection when the joint is closed. Depending on the connection type, Relifix can be used as a universal through or branch connection. It is suitable for the connection of polymeric cables and wires made of PVC, XLPE, PE, EPR etc. Application: In low-voltage electrical networks as through and/or branch connections, e.g. underground, subterranean, outdoor, indoor and wiring ducts.
| Property | Value |
| Nominal conductor cross-section main cable: | 6 mm² |
| Nominal conductor cross-section branch cable: | 2 to 6 mm² |
| Version: | Gel |
| Type: | Through branch |
| Cable diameter main cable: | 9 to 20 mm |
| Cable diameter branch cable: | 9 to 20 mm |
| Mining approval: | no |
| Suitable for: | N(A)YY |
| Connection accessories included: | Screw connectors |
