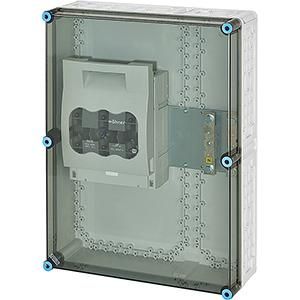

Housing for the construction of power switchgear combinations up to 630 A or as a single housing. Made of high-quality polycarbonate with protective insulation. Wall feedthroughs with large openings for the electrical connection of the housings to each other. Cable entry on all housing walls via metric knockouts or mounting flanges. Housing for wall mounting also via external brackets or with mounting rails. Housing with fuse switch disconnector NH 2, 3-pole, according to IEC 60947-3 on mounting plate. With PE and N terminals for copper conductors. Cover closures for tool operation.
| Property | Value |
| Housing height: | 600 mm |
| Rated operating current Ie: | 400 A |
| Size of fuse links: | NH2 |
| Rated insulation voltage Ui: | 690 V |
| Degree of protection (IP): | IP65 |
| Number of poles: | 3 |
| With Fuse monitoring: | no |
| Max. rated operating voltage Ue at AC: | 800 V |
Features
Rated operating current Ie
400 A
HAB
1xNH 2 3-pole 400A +PE+N
Manufacturer
HAN
Mi5652
GTIN
4012591129554
Rated insulation voltage Ui
690V
Max. rated operating voltage Ue at AC
800V
With fuse monitoring
No
Number of poles
3
IP protection)
IP65
