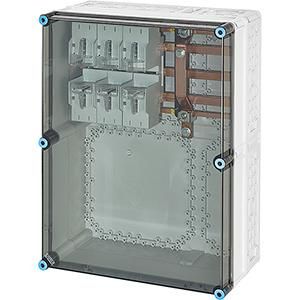

Housing for the construction of power switchgear combinations up to 630 A or as a single housing. Made of high-quality polycarbonate with protective insulation. Wall bushings with large openings for the electrical connection of the housings to each other. Cable entry on all housing walls via metric knockouts or mounting flanges. Housing for wall mounting also via external brackets or with mounting rails. Housing with fuse base NH 2, 3-pole, according to IEC 60269 on busbar. Without supply terminals. With PE and N terminals. Cover closures for tool operation.
| Property | Value |
| Housing height: | 600 mm |
| Housing width: | 450 mm |
| Housing depth: | 255 mm |
| Rated operating current Ie: | 400 A |
| Size of the fuse links: | NH2 |
| Rated insulation voltage Ui: | 690 V |
| Protection class (IP): | IP65 |
| Equipment of the fuse switch housing: | with fuse switch |
| Number of poles: | 3 |
Features
Rated operating current Ie
400 A
HAB
1xNH 2 3-pole busbar 400A 5-pole
Manufacturer
HAN
Mi6676
GTIN
4012591129660
Rated insulation voltage Ui
690V
Number of poles
3
IP protection)
IP65
