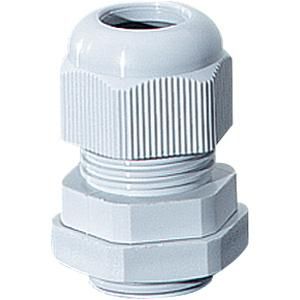

Mounting cable gland for PG 48 knockouts and sealing range Ø 34-44 mm.
| Property | Value |
| Wrench size: | 65 mm |
| Nominal thread size metric/PG: | 48 |
| Suitable for cable diameters: | 34 to 44 mm |
| Protection class (IP): | IP65 |
| Operating temperature: | -25 to 70 °C |
| Halogen-free: | yes |
| Thread length: | 14 mm |
| Thread type: | PG |
| Design: | straight |
| Color: | light gray |
| Material: | plastic |
| With strain relief: | yes |
| Surface: | untreated |
| Hexagon corner dimension: | 72.5 mm |
| Type of seal: | Sealing ring |
| Impact-resistant: | yes |
| Bending protection: | no |
| RAL number: | 7035 |
| Material quality: | Polyamide (PA) |
| Glass fiber reinforced: | no |
| With lock nut: | yes |
| Multiple sealing inserts: | no |
| Flat cable gland: | no |
| Dividable gland: | no |
| Explosion-tested version: | no |
| For Ex-zone gas: | without |
| For Ex-zone dust: | without |
Features
Impact resistant
Yes
Explosion-tested version
No
Nominal thread size metric/PG
48
Fiberglass reinforced
No
Suitable for cable diameter
34 to 44mm
Wrench size
65 mm
HAB
AKS48 Pg48
Minimal order
Pcs
Manufacturer
HAN
AKS48
GTIN
4012591770060
Version
Straight
Operating temperature
-25 to 70 °C
Color
Thread type
PG
Thread length
14 mm
Halogen free
Yes
With strain relief
Yes
Surface
Untreated
RAL number
7035
IP protection)
IP65
Material
Plastic
Material quality
Polyamide (PA)
