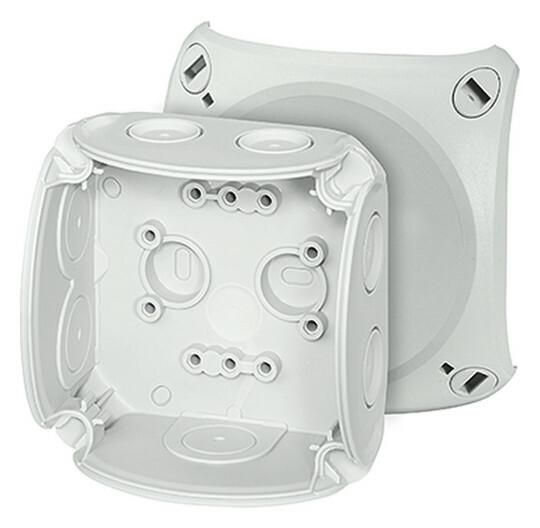

Cable junction box made of high-quality thermoplastic. For surface-mounted applications in buildings or protected installation outdoors. With external tabs for fastening and cover fastening via quick-release fasteners. Cable junction box without terminals. Cable entry via elastic sealing membranes in the housing walls and floor. Subsequent use of cable glands possible by removing the sealing membrane. With lid retaining strap.
| Property | Value |
| Protection rating (IP): | IP66 |
| Length: | 93 mm |
| Width: | 93 mm |
| Gewicht: | 0,1 |
| Gewichtseinheit: | KG |
| Statistische Warennummer: | 85369010 |
| Montageart: | Wand-/Deckenmontage |
| Color: | gray |
| Halogen-free: | yes |
| Depth: | 62 mm |
| Shape: | square |
| Surface: | untreated |
| Equipment: | without |
| Rated insulation voltage Ui: | 1000 V |
| Sealable: | yes |
| Functional integrity: | without |
| Material: | Plastic |
| Number of entries: | 8 |
| Cover fastening: | screwed |
| For pipe diameters: | other |
| Entry from the rear: | yes |
| Type of housing feedthrough: | other |
| Operating temperature: | -25 - 40 °C |
| For Ex-Zone Gas: | without |
| For Ex-Zone Dust: | without |
| Cover design: | other |
| Short description: | Cable junction box up to 2.5 sqmm without terminal |
Features
HAB
DK0200G up to 2.5qmm
Manufacturer
HAN
DK 0200 G
GTIN
4012591124924
Cover design
Other
Rated insulation voltage Ui
1000V
Width
93 mm
Operating temperature
-25 - 40 °C
Color
Shape
Square
Functional preservation
Without
Weight
0,1
Weight unit
kg
Halogen free
Yes
Short description
Cable junction box up to 2.5 sq mm without terminal
Length
93 mm
Mounting type
Wall/ceiling mounting
Surface
Untreated
IP protection)
IP66
Statistical commodity code
85369010
Depth
62 mm
Material
Plastic
