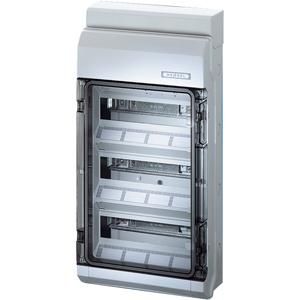

Small distributor made of high-quality thermoplastic (polystyrene). For surface-mounted applications in buildings or protected installation outdoors. Automated housing with 36 division units for installing devices with snap-on fastening on DIN rails. Cable entry is via metric knockouts. With transparent door and cable entry panel, integrated accessory compartment and cover strip for the device cutout. Protection class IP 65.
| Property | Value |
| Width in pitch units: | 12 |
| Number of rows: | 3 |
| Height: | 583 mm |
| Width: | 295 mm |
| Depth: | 129 mm |
| Protection class (IP): | IP65 |
| Color: | gray |
| Mounting type: | Surface-mounted |
| With lock: | no |
| Transparent cover/door: | yes |
| Material of the housing: | Plastic |
| RAL number: | 7035 |
| DIN rail: | yes |
| Mounting option: | yes |
| Installation depth: | 93 mm |
| EMC version: | no |
| With mounting plate: | no |
| Type of cover: | door |
| Cover design: | closed |
| Inner depth: | 114 mm |
Features
HAB
KV9336M 36 modules IP65 KV 90
Manufacturer
HAN
KV9336M
GTIN
4012591620648
Cultivation option
Yes
Number of rows
3
Type of cover
Door
Cover design
Closed
Width
295 mm
Width in pitch units
12
DIN rail
Yes
EMC version
No
Installation depth
93 mm
Color
Height
583 mm
Internal depth
114 mm
With mounting plate
No
With lock
No
Mounting type
Surface-mounted
RAL number
7035
IP protection)
IP65
Depth
129 mm
Transparent lid/door
Yes
Housing material
Plastic
