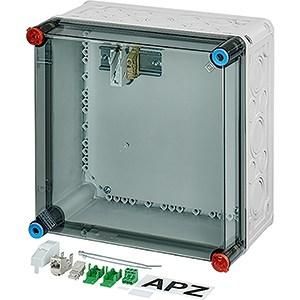

Housing for the construction of energy switchgear combinations up to 630 A or as a single housing. Made of high-quality polycarbonate with protective insulation. Wall feedthroughs with large openings for the electrical connection of the housings to each other. Cable entry on all housing walls via metric knockouts or mounting flanges. Housing for wall mounting also via external brackets or with mounting rails. Housing for the integration of a router of the measuring point operator. Installation of the router on a mounting plate 259 x 259 mm is possible.
| Property | Value |
| Height: | 300 mm |
| Width: | 300 mm |
| Depth: | 170 mm |
| Installation depth: | 146 mm |
| Inner depth: | 146 mm |
| Protection type (IP): | IP65 |
| Protection class: | II |
| Impact resistance: | IK08 |
| Material of the housing: | Plastic |
| RAL number: | 7035 |
| Mounting type: | Surface-mounted |
| Suitable for outdoor use: | no |
| Surface: | untreated |
| Suitable for lightning protection: | no |
| Mounting option: | yes |
| With mounting plate: | yes |
| Number of cable entries: | 40 |
| Number of modules: | 1 |
| Number of openings for flange plates: | 4 |
| Number of rows: | 1 |
| Type of cover: | Cover |
| Type of door: | without |
| Cover design: | closed |
| Width in division units: | 6 |
| Functional integrity: | without |
| Material thickness of housing: | 3 mm |
| Material thickness of door/cover: | 3 mm |
| With lock: | no |
| Rated current (In): | 16 A |
| Transparent cover/door: | yes |
Features
HAB
Mi 2279 300x300x170mm
Manufacturer
HAN
Mi 2279
GTIN
4012591134695
Cultivation option
Yes
Number of cable entries
40
Number of modules
1
Number of rows
1
Number of openings for flange plates
4
Type of cover
Lid
Type of door
Without
Cover design
Closed
Width
300 mm
Width in pitch units
6
Installation depth
146 mm
Functional preservation
Without
Suitable for outdoor use
No
Suitable for lightning protection
No
Height
300 mm
Internal depth
146 mm
Housing material thickness
3 mm
Material thickness door/lid
3 mm
With mounting plate
Yes
With lock
No
Mounting type
Surface-mounted
Nominal current (In)
16A
Surface
Untreated
RAL number
7035
Impact resistance
IK08
IP protection)
IP65
Protection class
II
Depth
170 mm
Transparent lid/door
Yes
Housing material
Plastic
