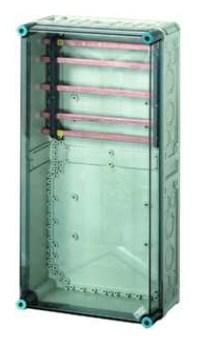

Housings for the construction of power switchgear combinations up to 630 A or as individual housings. Made of high-quality polycarbonate with protective insulation. Wall feedthroughs with large openings for the electrical connection of the housings to one another. Cable entry on all housing walls via metric knockouts or mounting flanges. Housings for wall mounting also via external brackets or with mounting rails. Housings with busbars, without device, without terminals. Cover locks for tool operation.
| Property | Value |
| Height: | 600 mm |
| Width: | 300 mm |
| Depth: | 170 mm |
| Number of poles: | 5 |
| Rated current of rail system: | 400 A |
| Short-circuit strength (Icw): | 30 kA |
| Protection class (IP): | IP65 |
| Equipped with busbar: | yes |
| Mounting option: | yes |
| With transparent cover: | yes |
| Housing material: | Plastic |
| Mounting type: | Surface-mounted |
Features
HAB
Mi 6458 400A
Manufacturer
HAN
Mi 6458
GTIN
4012591657927
Cultivation option
Yes
Width
300 mm
Height
600 mm
Short circuit strength (Icw)
30kA
Mounting type
Surface-mounted
Number of poles
5
IP protection)
IP65
Depth
170 mm
Housing material
Plastic
