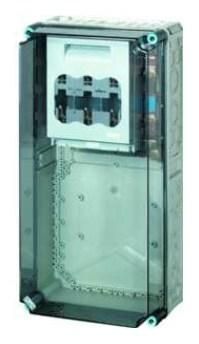

Housing for the construction of power switchgear combinations up to 630 A or as a single housing. Made of high-quality polycarbonate with protective insulation. Wall bushings with large openings for the electrical connection of the housings to each other. Cable entry on all housing walls via metric knockouts or mounting flanges. Housing for wall mounting also via external brackets or with mounting rails. Housing with fuse switch disconnector NH 1, 3-pole, according to IEC 60947-3 on busbars. Without supply terminals. With PE and N terminals. Connection direction can be changed. Cover closures for tool operation.
| Property | Value |
| Housing height: | 600 mm |
| Housing width: | 300 mm |
| Housing depth: | 214 mm |
| Rated operating current Ie: | 250 A |
| Size of the fuse links: | NH1 |
| Rated insulation voltage Ui: | 690 V |
| Protection class (IP): | IP65 |
| Equipment of the fuse switch housing: | with fuse switch disconnector |
| Number of poles: | 3 |
| With fuse monitoring: | no |
| Max. rated operating voltage Ue at AC: | 800 V |
Features
Rated operating current Ie
250 A
HAB
Mi 6479 630A
Manufacturer
HAN
Mi 6479
GTIN
4012591657842
Rated insulation voltage Ui
690V
Max. rated operating voltage Ue at AC
800V
With fuse monitoring
No
Number of poles
3
IP protection)
IP65
