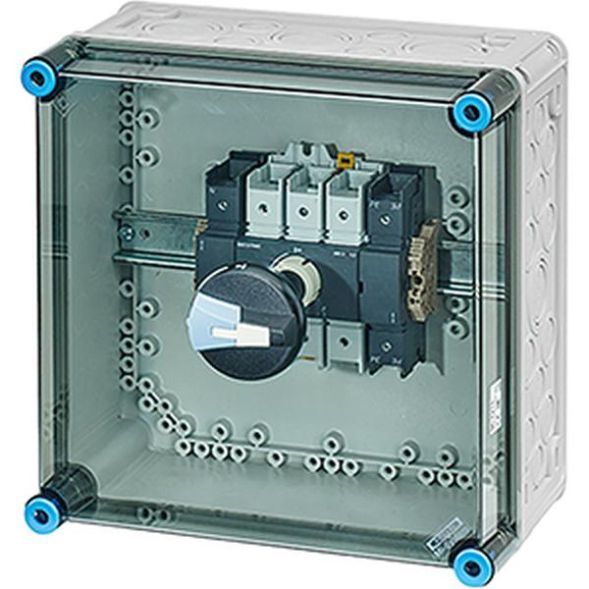

Housing for the construction of power switchgear combinations up to 630 A or as a single housing. Made of high-quality polycarbonate with protective insulation. Wall feedthroughs with large openings for the electrical connection of the housings to one another. Cable entry on all housing walls via metric knockouts or mounting flanges. Housing for wall mounting also via external brackets or with mounting rails. Housing with load-break switch 125 A, 4-pole, in accordance with IEC 60947-3. With PE terminal for copper conductors. Handle of the load-break switch can be locked. Cover closures for tool operation.
| Property | Value |
| Number of poles: | 4 |
| Rated operating power at AC-23, 400 V: | 55 kW |
| Rated continuous current Iu: | 125 A |
| Max. Rated operating voltage Ue at AC: | 690 V |
| Design as EMERGENCY STOP device: | no |
| Protection class (IP), front: | IP65 |
| Connection type main circuit: | Box terminal |
| Device design: | Complete device in housing |
| Design of the actuating element: | Toggle |
| Suitable for floor mounting: | no |
| Integrated motor drive: | no |
| Suitable for front mounting 4-hole: | no |
| Version as maintenance/repair switch: | no |
| Voltage release optional: | no |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | no |
| Version as main switch: | yes |
| Design as safety switch: | no |
| Motor drive optional: | no |
| Lockable: | yes |
| Design as reversing switch: | no |
| Rated short-time withstand current Icw: | 2.75 kA |
| Color of the actuating element: | black |
| Rated operating voltage: | 690 V |
| Rated operating power at AC-3, 400 V: | 55 kW |
| Switching capacity at 400 V: | 55 kW |
| Rated continuous current at AC-21, 400 V: | 125 A |
Features
HAB
125A 4-pole + PE
Manufacturer
HAN
Mi 7216
GTIN
4012591133889
Connection type main circuit
Frame clamp
Designed as main switch
Yes
Designed as an EMERGENCY STOP device
No
Designed as a safety switch
No
Designed as a maintenance/repair switch
No
Version as reversing switch
No
Design of the actuating element
Gag
Rated operational power at AC-23, 400 V
55kW
Rated operational power at AC-3, 400 V
55kW
Rated operating voltage
690V
Rated continuous current Iu
125A
Rated continuous current at AC-21, 400 V
125A
Rated short-time withstand current Icw
2.75kA
Color of the actuator
Black
Suitable for outdoor use
No
Suitable for floor mounting
No
Suitable for front mounting 4-hole
No
Suitable for front mounting Central
No
Suitable for distribution board installation
No
Suitable for intermediate construction
No
Device type
Complete device in housing
Max. rated operating voltage Ue at AC
690V
Motor drive integrated
No
Motor drive optional
No
Number of poles
4
Switching capacity at 400 V
55kW
Protection class (IP), front
IP65
Voltage release optional
No
Lockable
Yes
