Description

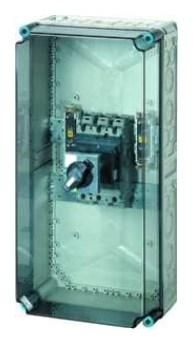

Housing for the construction of power switchgear combinations up to 630 A or as a single housing. Made of high-quality polycarbonate with protective insulation. Wall bushings with large openings for the electrical connection of the housings to one another. Cable entry on all housing walls via metric knockouts or mounting flanges. Housing for wall mounting also via external brackets or with mounting rails. Housing with circuit breaker 250 A, 3-pole, in accordance with IEC 60947-2. With PE and N terminals for copper conductors. With overload and short-circuit release. Handle of the circuit breaker can be locked. Cover locks for tool operation.
| Property | Value |
| Number of poles: | 3 |
| Rated current: | 250 A |
| Breaking capacity according to IEC 947, lcu, 400 V: | 36 kA |
| Rated voltage AC 50 Hz: | 690 V |
| Suitable for series installation: | no |
| Overload release: | 250 A |
| With earth fault protection function: | no |
| Height: | 600 mm |
| Width: | 300 mm |
| Depth: | 262 mm |
Features
HAB
Mi 7432 250A 3-pole + PE + N
Manufacturer
HAN
Mi 7432
GTIN
4012591115366
Width
300 mm
Suitable for series installation
No
Height
600 mm
Rated current
250A
Number of poles
3
Depth
262 mm
