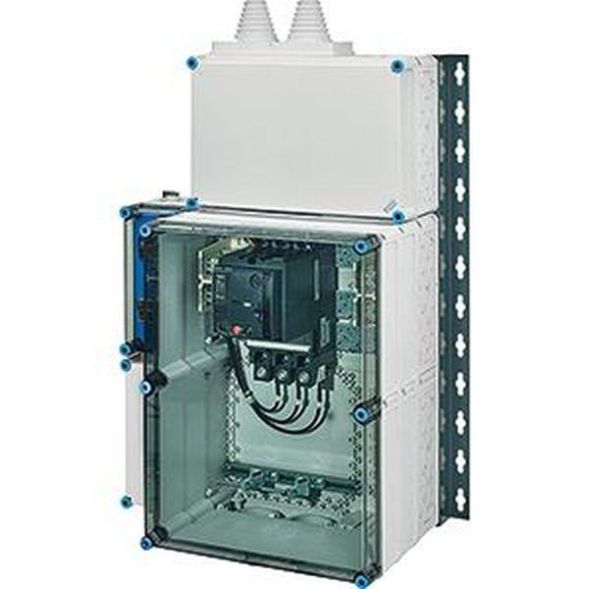

Isolation point for connecting generating systems to the low-voltage network are ready-to-connect distributions up to 315 kW/350 kVA in accordance with VDE-AR-N 4110 with coupling switch and NA protection. The housings are made of high-quality thermoplastic and are protectively insulated. Protection class IP 54. They are suitable for protected outdoor installation and are UV-resistant. Isolation point for generating systems for CHP, photovoltaic and wind power plants. Rated output 315 kW/350 kVA, for 4/5-wire TN network. Coupling switch with 1 circuit breaker with motor drive, 3-pole. Cover locks for tool operation, sealable. Wall mounting with mounting rails.
| Property | Value |
| Number of poles: | 3 |
| Rated current: | 504 A |
| Breaking capacity according to IEC 947, lcu, 400 V: | 36 kA |
| Rated voltage AC 50 Hz: | 400 V |
| Suitable for series installation: | no |
| Overload release: | 250 to 630 A |
| With earth fault protection function: | no |
| Height: | 1400 mm |
| Width: | 686 mm |
| Depth: | 402 mm |
Features
HAB
Mi AE 5263 350kVA 3-pole
Manufacturer
HAN
Mi AE 5263
GTIN
4012591133759
Width
686 mm
Suitable for series installation
No
Height
1400 mm
Rated current
504 A
Number of poles
3
Depth
402 mm
