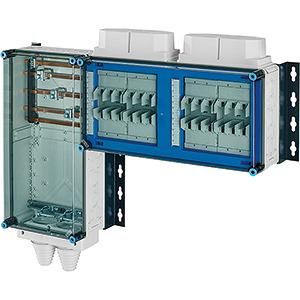

Housings for the construction of power switchgear combinations up to 630 A or as individual housings. Made of high-quality polycarbonate with protective insulation. Wall feedthroughs with large openings for the electrical connection of the housings to one another. Cable entry on all housing walls via metric knockouts or mounting flanges. Housings for wall mounting also via external brackets or with mounting rails. Ready-to-connect distributor with 4 fuse switch disconnectors NH 00, 3-pole, on 5-pole busbar system 250 A.
| Property | Value |
| Rated current: | 125 A |
| Height: | 866 mm |
| Width: | 986 mm |
| Depth: | 232 mm |
| Protection class (IP): | IP54 |
| Number of groups: | 4 |
| Placement on rail system: | universal |
| With transparent cover: | yes |
| Material of the housing: | plastic |
| Fuse: | NH fuse |
| Mounting option: | yes |
Features
HAB
Mi AS 9144
Manufacturer
HAN
Mi AS 9144
GTIN
4012591134985
Cultivation option
Yes
Rated current
125A
Width
986 mm
Height
866 mm
IP protection)
IP54
Depth
232 mm
Housing material
Plastic
