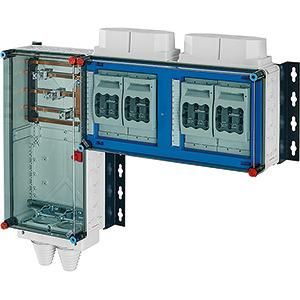

Housings for the construction of power switchgear combinations up to 630 A or as individual housings. Made of high-quality polycarbonate with protective insulation. Wall feedthroughs with large openings for the electrical connection of the housings to one another. Cable entry on all housing walls via metric knockouts or mounting flanges. Housings for wall mounting also via external brackets or with mounting rails. Ready-to-connect distributor with 4 fuse switch disconnectors NH 00, 3-pole, on 5-pole busbar system 250 A.
| Property | Value |
| Housing height: | 866 mm |
| Rated operating current Ie: | 120 A |
| Size of the fuse inserts: | NH00 |
| Rated insulation voltage Ui: | 690 V |
| Protection class (IP): | IP54 |
| Number of poles: | 3 |
| With fuse monitoring: | no |
| Max. rated operating voltage Ue at AC: | 800 V |
Features
Rated operating current Ie
120 A
HAB
Mi HV 9154
Manufacturer
HAN
Mi HV 9154
GTIN
4012591134961
Rated insulation voltage Ui
690V
Max. rated operating voltage Ue at AC
800V
With fuse monitoring
No
Number of poles
3
IP protection)
IP54
