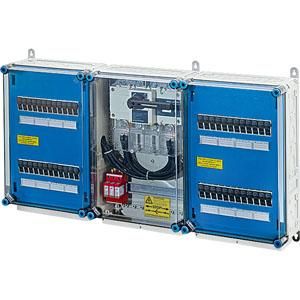

Generator junction box for PV systems up to 1000 V dc according to IEC 61439, fully assembled and wired ready for connection. The housings made of high-quality thermoplastic are protectively insulated, protection class IP 65. If required, PV generator junction boxes are equipped with surge arresters, generator disconnectors and string fuses. They are suitable for protected outdoor installation and are UV-resistant. Wall mounting is done using external brackets made of stainless steel. PV generator junction box with string fuses, DC surge arrester type 2 and DC generator disconnector. 24 x PV string to 1 x inverter input. 24 x fuse holders + and - each for cylindrical fuse inserts. Lid locks for tool operation.
| Property | Value |
| Width: | 900 mm |
| Length: | 505 mm |
| Depth: | 170 mm |
| Color: | grey |
| Protection class (IP): | IP65 |
| Halogen-free: | yes |
| Equipment: | other |
| Mounting type: | Wall/ceiling mounting |
| Material: | Plastic |
| Cover fastening: | screwed |
| Sealable: | no |
| Can be mounted in series: | no |
| Shape: | other |
| Type of housing feedthrough: | other |
| For Ex zone gas: | without |
| Functional integrity: | without |
| Explosion-tested version: | no |
| Potting compound included: | no |
| Potable: | no |
| For Ex zone dust: | without |
| Surface: | untreated |
| With shielding: | no |
| Rated insulation voltage Ui: | 1000 V |
| Insertion from the rear: | no |
| Weatherproof: | yes |
| Cover design: | other |
| Operating temperature: | -5 to 40 °C |
Features
Explosion-tested version
No
HAB
Wed PV 3941
Manufacturer
HAN
Mi PV 3941
GTIN
4012591116127
Cover design
Other
Rated insulation voltage Ui
1000V
Width
900 mm
Operating temperature
-5 to 40 °C
Color
Shape
Other
Functional preservation
Without
Halogen free
Yes
Length
505 mm
Mounting type
Wall/ceiling mounting
Surface
Untreated
IP protection)
IP65
Depth
170 mm
Material
Plastic
