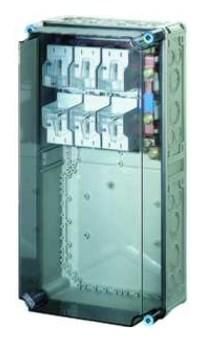

Housing for the construction of power switchgear combinations up to 630 A or as a single housing. Made of high-quality polycarbonate with protective insulation. Wall feedthroughs with large openings for the electrical connection of the housings to one another. Cable entry on all housing walls via metric knockouts or mounting flanges. Housing for wall mounting also via external brackets or with mounting rails. Housing with fuse base NH 1, 3-pole, according to IEC 60269 on mounting plate. Without supply terminals. With PE and N terminals. Lid locks for tool operation.
| Property | Value |
| Rated current: | 250 A |
| Height: | 600 mm |
| Width: | 300 mm |
| Depth: | 214 mm |
| Protection class (IP): | IP65 |
| Number of groups: | 1 |
| Placement on rail system: | universal |
| With transparent cover: | yes |
| Material of the housing: | Plastic |
| Fuse: | NH fuse |
| Mounting option: | yes |
Features
HAB
Mi6475 630A
Manufacturer
HAN
Mi 6475
GTIN
4012591657804
Cultivation option
Yes
Rated current
250A
Width
300 mm
Height
600 mm
IP protection)
IP65
Depth
214 mm
Housing material
Plastic
