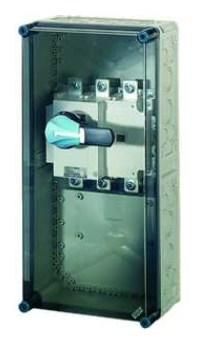

Housing for the construction of power switchgear combinations up to 630 A or as a single housing. Made of high-quality polycarbonate with protective insulation. Wall feedthroughs with large openings for the electrical connection of the housings to one another. Cable entry on all housing walls via metric knockouts or mounting flanges. Housing for wall mounting also via external brackets or with mounting rails. Housing with load-break switch 400 A, 3-pole, in accordance with IEC 60947-3. With PE and N terminals for copper conductors. Handle of the load-break switch can be locked. Cover closures for tool operation.
| Property | Value |
| Number of poles: | 3 |
| Rated operating power at AC-23, 400 V: | 220 kW |
| Rated continuous current Iu: | 400 A |
| Max. Rated operating voltage Ue at AC: | 500 V |
| Design as EMERGENCY STOP device: | no |
| Protection class (IP), front: | IP65 |
| Connection type main circuit: | Bolt connection |
| Device design: | Complete device in housing |
| Design of the actuating element: | long rotary handle |
| Suitable for floor mounting: | no |
| Motor drive integrated: | no |
| Suitable for front mounting 4-hole: | no |
| Version as maintenance/repair switch: | no |
| Voltage release optional: | no |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | no |
| Version as main switch: | yes |
| Design as safety switch: | no |
| Motor drive optional: | no |
| Lockable: | yes |
| Design as reversing switch: | no |
| Rated short-time withstand current Icw: | 13 kA |
| Color of the actuating element: | black |
| Rated operating voltage: | 500 V |
| Rated operating power at AC-3, 400 V: | 220 kW |
| Switching capacity at 400 V: | 220 kW |
| Rated continuous current at AC-21, 400 V: | 400 A |
Features
HAB
MI7445 400A
Manufacturer
HAN
MI 7445
GTIN
4012591657989
Connection type main circuit
Bolt connection
Designed as main switch
Yes
Designed as an EMERGENCY STOP device
No
Designed as a safety switch
No
Designed as a maintenance/repair switch
No
Version as reversing switch
No
Design of the actuating element
Long rotary handle
Rated operational power at AC-23, 400 V
220kW
Rated operational power at AC-3, 400 V
220kW
Rated operating voltage
500V
Rated continuous current Iu
400A
Rated continuous current at AC-21, 400 V
400A
Rated short-time withstand current Icw
13kA
Color of the actuator
Black
Suitable for floor mounting
No
Suitable for front mounting 4-hole
No
Suitable for front mounting Central
No
Suitable for distribution board installation
No
Suitable for intermediate construction
No
Device type
Complete device in housing
Max. rated operating voltage Ue at AC
500V
Motor drive integrated
No
Motor drive optional
No
Number of poles
3
Switching capacity at 400 V
220kW
Protection class (IP), front
IP65
Voltage release optional
No
Lockable
Yes
