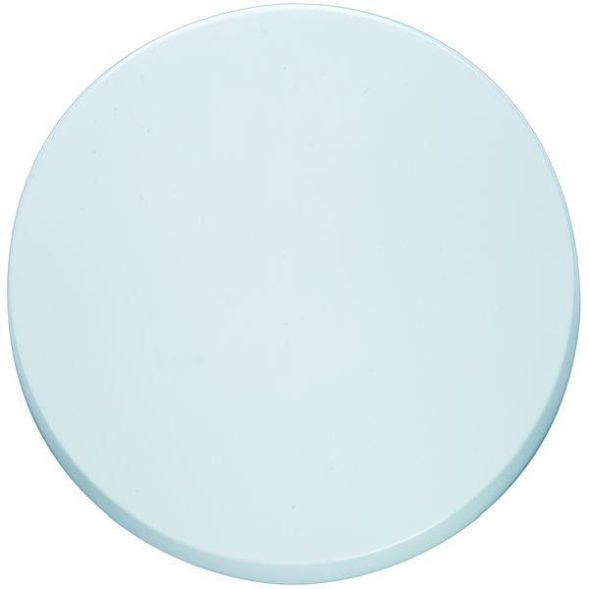

The antenna module is part of the PEHA Easyclick system. The antenna module was developed as a gateway between the PEHA Easyclick EnOcean products and the Centraline HAWK/EAGLEHAWK controllers. The communication protocol between the Centraline controllers and the antenna module gateway is defined in a special software driver that is available for the Arena NX software. The signals are transmitted via the European harmonized frequency 868.3 MHz. Technical data: The plastic housing is prepared for surface mounting on the wall or ceiling and has a white housing cover. Connection terminals for the RS485 bus, protection class IP20, 868.3 MHz, own consumption standby = approx. 0.4 W, operation = approx. 22 mA/0.5 W, housing dimensions approx. 130 mm, H approx. 29 mm
