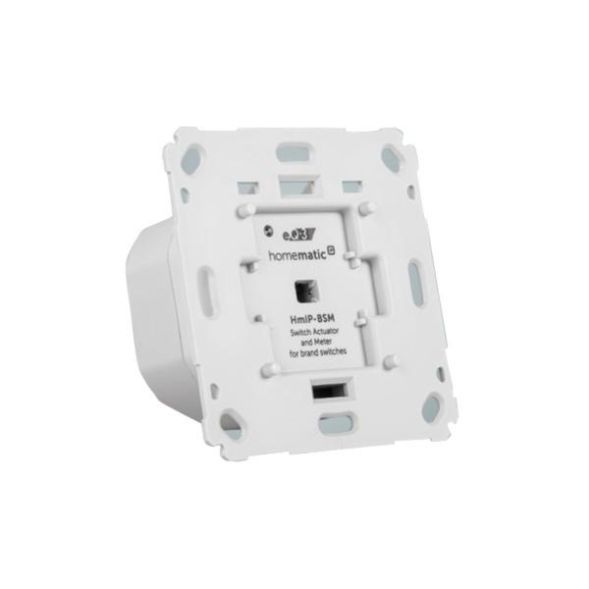

The switch-measuring actuator for branded switches offers convenient control via the Homematic IP app or via the Homematic IP remote control. The measuring function enables reliable detection of switched-on consumers - this means that the switch-measuring actuator can be used in existing cross and changeover circuits. A compact design enables installation in standard flush-mounted boxes. A neutral conductor must be present for installation.
| Property | Value |
| Type: | Button |
| EAN: | 4047976427208 |
| Manufacturer no.: | 142720A0 |
| Smarthome: | Alexa, HomeMatic IP |
| Device properties: | Note: Max. switching capacity 1150 W |
| Area of application: | Indoors |
| Protection: | Protection class: IP20 |
| Connection type: | Radio |
| Radio: | Frequency, up to 868.3 MHz | Feature: | Radio frequency 868.3 MHz/869.525 MHz, typ. Wireless free field range 240 m |
| Accessories: | available, screws 3.2 x 15 mm (2x), screws 3.2 x 25 mm (2x), operating instructions |
| Dimensions: | Width: 71 mm x Height: 71 mm x Depth/Length: 37 mm |
| Weight: | 43 grams |
Features
EAN
4047976427208
Manufacturer
HAN
142720A0
GTIN
4047976427208
Dimensions
Width: 71 mm x Height: 71 mm x Depth/Length: 37 mm
Area of application
inside
Feature
Radio frequency 868.3 MHz/869.525 MHz, Typ. radio free field range 240 m
Suitable for outdoor use
No
Weight
43 grams
Manufacturer No.
142720A0
Type
Button
Connection type
Wireless
Accesories
Available, screws 3.2 x 15 mm (2x), screws 3.2 x 25 mm (2x), operating instructions
