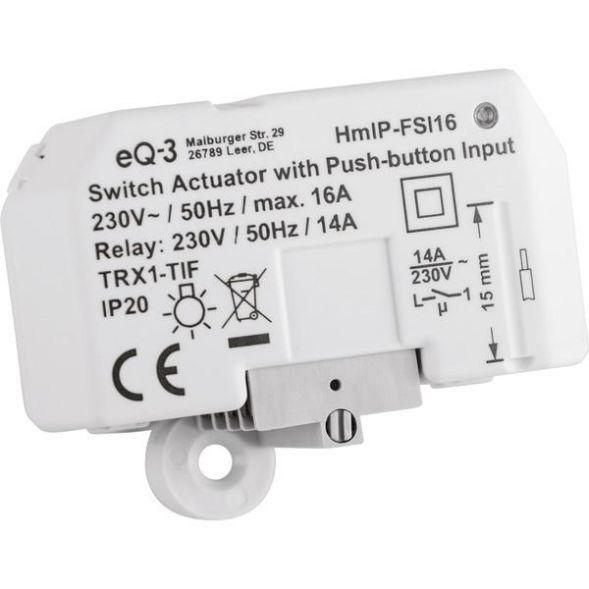

Intelligently control lighting in the Smart Home and still use the existing buttons or switches for the usual operation - this is possible with the easy-to-retrofit switching actuator from Homematic IP. The integrated button input and radio communication enable versatile control options: directly via standard 230 V buttons or switches, wirelessly via Homematic IP buttons or remote controls, or at any time via the Homematic IP smartphone app. The switching actuator is suitable for many consumers such as ohmic loads (14 A permanent, 16 A for 15 min), incandescent lamps up to 1500W, lamps with internal ballast, HV halogen lamps (1500 W), LV halogen lamps with electronic or iron core transformer (1500 W), fluorescent lamps uncompensated or parallel compensated (1500 W) or electric radiators and electric heating systems (8 A, 200,000 operations).
| Property | Value |
| Type: | Switch |
| Color: | white |
| EAN: | 4047976543465 |
| Manufacturer no.: | 154346A0 |
| Smarthome: | HomeMatic IP |
| Device properties: | Note, Max. switching power: 3220 W continuous (3680 W for 15) min, Max. switching current: 14 A continuous (16 A for 15 min) |
| Area of application: | Indoors |
| Range: | Max. Receiving (open field) , 180 m |
| Protection: | Protection class , IP20 |
| Voltage: | Input , 230 V |
| Current: | Consumption , 0.25 W |
| Temperature range: | Operation, -10 - 55 °C |
| Connection type: | Cable |
| Radio: | Frequency, up to 868 MHz |
| Feature: | Radio frequency band: 868.0-868.6 MHz, 869.4-869.65 MHz |
| Note: | Operation requires connection to one of the following solutions: Homematic IP Access Point, Central CCU2/CCU3, partner solutions from third-party providers |
| Accessories: | available, operating instructions |
| Dimensions: | Width: 54 mm x Height: 33 mm x Depth/Length: 41 mm |
| Weight: | 49 grams |
