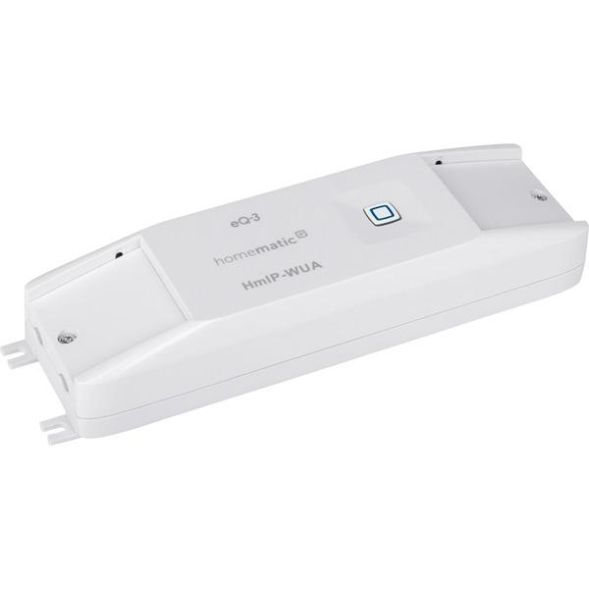

The mains-powered Homematic IP universal actuator can be used in a variety of ways in the smart home. The 0-10 V and 1-10 V interfaces enable the individual control of controlled living space ventilation (KWL) or analogue adjustable dimmers for the right lighting mood. Brightness and time profiles are set up individually using the Homematic IP app and can be switched conveniently. Analogue adjustable dimmers, such as DIN rail dimmers, become smart using the universal switching actuator. This dimmer can be controlled using the Homematic IP app via a 0-10 V interface. Brightness and time profiles are set up individually and can be switched conveniently. The mains-powered universal actuator has a switching output with a 0-10 V interface. It is also possible to connect a consumer to the parallel 1-10 V interface.
| Property | Value |
| Type: | Relay |
| EAN: | 4047976547616 |
| Manufacturer no.: | 154761A0 |
| Smarthome: | HomeMatic IP |
| Device properties: | Operation, smartphone app |
| Area of application: | Indoors |
| Range: | Max. Receiving (open field) , 240 m |
| Protection: | Protection class , IP20 |
| Power: | Consumption , 0.2 W |
| Connection type: | Radio |
| Radio: | Frequency , up to 868 MHz |
| Further information: | Cable type and cross-section: 230 V: 1.5 - 2.5 mm², 10 V: 0.25 - 1.5 mm², radio frequency band 868.0-868.6 MHz/869.4-869.65 MHz |
| Note: | Switching voltage: 230 V |
| Dimensions: | Width: 51 mm x Height: 31 mm x Depth/Length: 187 mm |
| Weight: | 145 grams |
