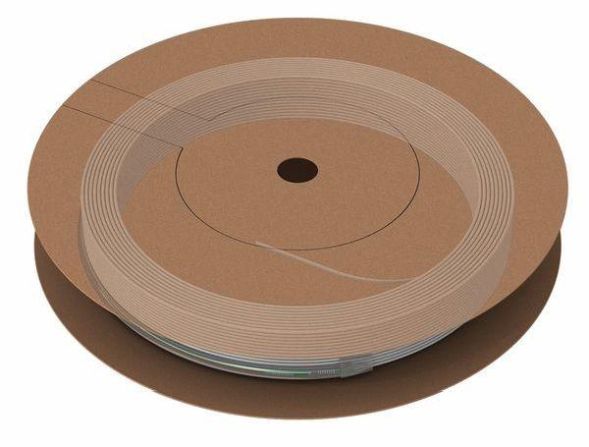

Cable Kit, 18m singlemode fiber optic cable HW-OFGK1, assembled side 1 with 2 x LC/APC connectors, side 2 with 2x LC/APC special version, with pull-in protection, wound on a spool
| Property | Value |
| Outer diameter approx.: | 1.85 mm |
| Sheath color: | white |
| Fiber type: | Singlemode 9/125 |
| Core type: | Full-loader |
| Number of fibers per Core: | 2 |
| With strain relief: | yes |
| With rodent protection: | no |
| Reinforcement: | no |
| Sheath material: | other |
| Cable metal-free: | yes |
| Low smoke according to EN 61034-2: | yes |
| Chemically resistant: | no |
| Blow-in: | yes |
| Number of fibers: | 2 |
| Halogen-free according to EN 60754-1/2: | yes |
| Oil-resistant according to EN 60811-404: | no |
| Category: | OS1 |
| Specification of sheath material: | other |
| Cable longitudinally watertight: | yes |
| Cable transversely watertight: | yes |
| Fire behavior class according to EN 13501-6: | Cca |
| Smoke development class according to EN 13501-6: | without |
| Drip behavior class according to EN 13501-6: | without |
| Acid development class according to EN 13501-6: | without |
| UV-resistant: | yes |
| Min. permissible bending radius, stationary use/permanently installed: | 10 mm |
| Laying in the ground: | no |
Features
Sheath material
Other
Outer diameter approx.
1.85 mm
Oil-resistant according to EN 60811-404
No
Category
OS1
HAB
2xLC/APC + 2xLC/APC special 18m
Manufacturer
HAN
HW-OFCKV1L018
GTIN
4250679740073
Coat color
White
With strain relief
Yes
UV-resistant
Yes
