for single-wire, multi-wire, fine-wire and extra-fine-wire conductors, in accordance with DIN, with markings for correct crimping, marking for narrow and wide crimping, engraved code number, cross-section and bore diameter for quick identification, manufacturer's note
| Property | Value |
| Nominal cross section: | 35 mm² |
| Suitable for fine-stranded conductors: | no |
| Insulation: | without |
| Design: | DIN design |
| Suitable for high temperatures (up to 650 °C): | no |
| Suitable for multi-stranded conductors: | yes |
| Suitable for enamelled wire: | no |
| Material: | copper |
| Suitable for solid Conductor: | no |
| Suitable for flat conductors: | no |
| Number of branches: | 2 |
| Sleeve shape: | long |
| Suitable for round conductors: | yes |
| Surface: | bare |
| AWG range: | 2 |
| For tensile connections: | no |
| Oil stop/central bar: | yes |
| Voltage range: | up to 10 kV |
| Connection type: | Butt connector |
Features
Oil stop/central bar
Yes
Voltage series
Up to 10 kV
Number of branches
2
HAB

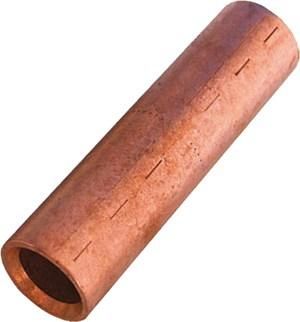

ICD35VLBK Part1 35qmm longitudinally sealed bk
Minimal order
10 pieces
Manufacturer
HAN
181290
GTIN
8014212195005
AWG range
2
Version
DIN version
For tensile connections
No
Suitable for flat conductors
No
Suitable for enamelled wire
No
Suitable for round conductors
Yes
Suitable for fine-stranded conductors
No
Suitable for high temperatures (up to 650 °C)
No
Suitable for solid ladders
No
Suitable for stranded conductors
Yes
Sleeve shape
Long
Isolation
Without
Nominal cross section
35 mm²
Surface
Blank
Connection type
Butt connectors
Material
Copper
