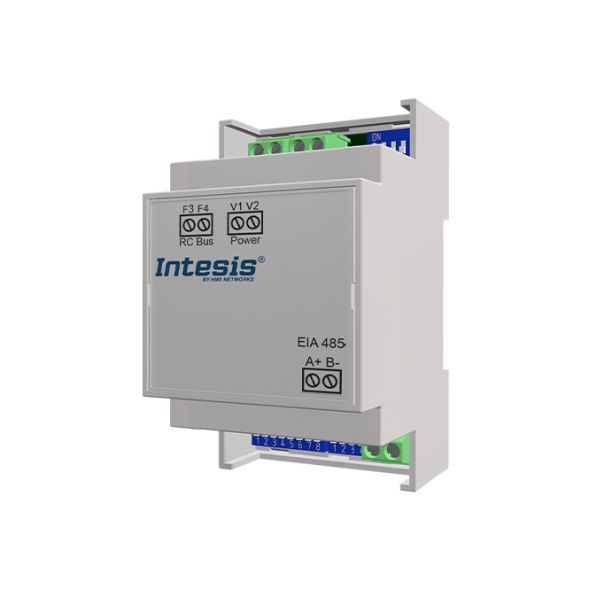

The INMBSSAM001R000 interfaces allow the integration of Samsung air conditioners into Modbus RTU (EIA-485) networks. Main features: - Compact dimensions: 93 x 53 x 58 mm - Quick and easy installation - Mounting on DIN rail, wall or inside some AC models - No external power supply required - Direct connection to MODBUS RTU (EIA485) networks - Up to 63 units on the same network - Modbus slave device - Direct connection to AC indoor unit - Up to 16 AC indoor units can be controlled as one unit - Configuration via DIP switches or Modbus RTU - Complete control and monitoring - Real-time status of internal AC variables - Simultaneous use of AC remote controls and Modbus RTU For more technical data see User Manual / Installation Guide.
Features
Compatible with Google Assistant
N/A
Thread
No
Other bus systems
-
Operation via Bluetooth
No
EAN
2050006651391
Siemens LOGO!
No
Hager KNXeasy
No
KNX-Secure
No
Mbus
No
Modbus TCP
No
Samsung SmartThings
N/A
Wi-Fi
No
Zigbee
No
With Netatmo
No
Amazon Alexa
N/A
BAB-Tec
No
Gira One
No
JUNG HOME
No
KNX-RF
No
KNX-TP
No
Matter
No
Modbus
Yes
Shelly
No
Theben LUXORliving
No
Wiser Home
No
Division units
5
Manufacturer type
SM-RC-MBS-1
Transmission type
Cable
Apple HomeKit
N/A
Casambi
No
ENOcean
No
KNX USB interface
No
Modbus RTU
Yes
DALI
No
Class
climate gateway
Binary inputs integrated
N/A
Free@home
No
HAN
INMBSSAM001R000
Manufacturer
INTESIS
GTIN
2050006651391
Mounting type
series installation
