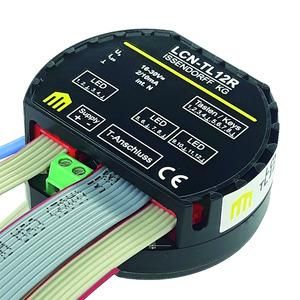

The LCN-TL12R converts any eight buttons (potential-free buttons) to the T-connection (button input) of the LCN modules. The LCN-TL12R controls any twelve LEDs (with or without series resistors). Can be used for all LCN modules from serial number: 10... (from June/2006). The familiar short, long, go commands are available on each button. The states off, on, flashing and flickering are supported for the LED control. The outputs are power sources with switchable current (2mA/10mA) for controlling LEDs. It is intended for use with the LCN-UPP or UPS module, but can also be used on the LCN-HU, LCN-SH and LCN-LD. The LCN-TL12R can be used to connect potential-free EIB buttons such as the Jung buttons of the 2224 and 2248 series or the Berker TS glass sensor 4-way. Another possible application is the control of conventional panels with up to 12 LEDs. LEDs can be used both with and without built-in series resistors.
