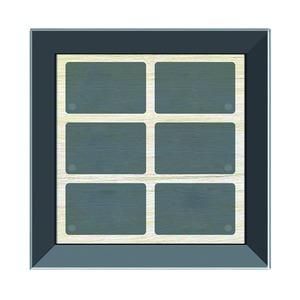

CN-GTS6 is a glass keypad. It is mounted on a flush-mounted box using the mounting plate supplied and firmly anchored with a slider. The connection is made via the T-connector of any LCN module from version 170212. The 6 capacitive sensor surfaces are arranged behind a 3 mm thick surface. A light touch of the surface is enough to trigger functions. An LED integrated into each of the 6 sensor surfaces provides information about the current status of any actuator or sensor in the building. Four states are possible. The LCN-GTS6 also offers a Corona® light ring with white LEDs for wall lighting (LCN-NUI required) and elegant blue backlighting (LCN-NUI required) of the buttons. This means that the LCN-GTS6 can be operated comfortably even in low ambient light. The individual labels for the LCN-GTS6 are transferred to a film or paper and placed through a small slot behind the glass surface. The label can be recreated at any time, so that changes in the key assignment are no problem. Easy-to-understand symbols and templates for the foil are included. The sensor surfaces of the LCN-GTS6 react capacitively to touching the glass surface. Depending on the duration of the touch, a corresponding LCN control command (SHORT, LONG or RELEASE) is sent. The control command is transmitted to the T-connection of an LCN module via the mounting frame included in the scope of delivery. The 6 status LEDs in the sensor surfaces are individually controlled via the T-connection and configured via LCN-PRO (ON, OFF, FLASHING, FLICKERING). With the integrated temperature sensor, the button is suitable for temperature control. Incl. Corona® light ring with white LEDs for decorative accent lighting and key backlighting (optional with LCN-NUI power supply).
