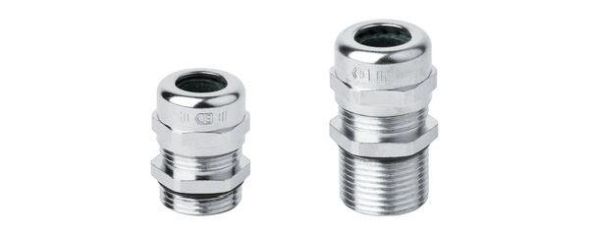

integrated strain relief, anti-twist protection, large sealing and clamping range, easy to install, connection thread standard length, cable gland Pg brass
| Property | Value |
| Wrench size: | 14 mm |
| Thread pitch: | 1.27 mm |
| Nominal thread size metric/PG: | 7 |
| Suitable for cable diameters: | 3 to 6.5 mm |
| Protection class (IP): | IP68 |
| Operating temperature: | -20 to 100 °C |
| Halogen-free: | no |
| Thread length: | 5 mm |
| Thread type: | PG |
| Design: | straight |
| Color: | other |
| Material: | metal |
| With strain relief: | yes |
| Surface: | nickel-plated |
| Type of seal: | sealing ring |
| Impact-resistant: | yes |
| Bending protection: | no |
| Material quality: | brass |
| Fiberglass reinforced: | no |
| With lock nut: | no |
| Multiple sealing inserts: | no |
| Flat cable gland: | no |
| Dividable gland: | no |
| Explosion-tested version: | no |
| For Ex-zone gas: | without |
| For Ex-zone dust: | without |
| Snaps into opening: | no |
| For armored cables: | no |
| EMC version: | no |
| Shielded: | no |
Features
Impact resistant
Yes
Explosion-tested version
No
Nominal thread size metric/PG
7
Fiberglass reinforced
No
Shielded
No
Suitable for cable diameter
3 to 6.5 mm
Wrench size
14 mm
HAB
PG7 nickel-plated brass IP68 -5bar
Minimal order
100 pcs
Manufacturer
HAN
50.007
GTIN
4024092011948
Version
Straight
EMC version
No
Operating temperature
-20 to 100 °C
Color
Thread type
PG
Thread length
5 mm
Thread
1.27 mm
Halogen free
No
With strain relief
Yes
Surface
Nickel-plated
IP protection)
IP68
Material
Metal
Material quality
Brass
