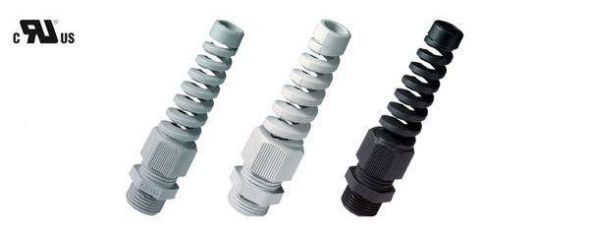

with bend protection spiral, for flexible cables, integrated strain relief, large sealing and clamping area, easy to install, RAL7001, connection thread standard length, cable gland metric plastic
| Property | Value |
| Wrench size: | 33 mm |
| Thread pitch: | 1.5 mm |
| Nominal thread size metric/PG: | 25 |
| Suitable for cable diameters: | 13 to 18 mm |
| Protection class (IP): | IP68 |
| Operating temperature: | -20 to 100 °C |
| Halogen-free: | no |
| Thread length: | 15 mm |
| Thread type: | metric |
| Design: | straight |
| Material: | plastic |
| With strain relief: | yes |
| Surface: | untreated |
| Type of seal: | Sealing ring |
| Impact-resistant: | yes |
| Bending protection: | yes |
| RAL number: | 7001 |
| Material quality: | Polyamide (PA) |
| Glass fiber reinforced: | no |
| With lock nut: | no |
| Multiple sealing inserts: | no |
| Flat cable gland: | no |
| Dividable gland: | no |
| Explosion-tested version: | no |
| For Ex-zone gas: | without |
| For Ex-zone dust: | without |
| Snaps into opening: | no |
| For armored cables: | no |
| EMC version: | no |
| Shielded: | no |
Features
Impact resistant
Yes
Explosion-tested version
No
Nominal thread size metric/PG
25
Fiberglass reinforced
No
Shielded
No
Suitable for cable diameter
13 to 18 mm
Wrench size
33 mm
HAB
50.021M25PABS
Minimal order
25 pcs
Manufacturer
HAN
50021M25PABS
GTIN
4024092107009
Version
Straight
EMC version
No
Operating temperature
-20 to 100 °C
Thread type
Metric
Thread length
15 mm
Thread
1.5 mm
Halogen free
No
With strain relief
Yes
Surface
Untreated
RAL number
7001
IP protection)
IP68
Material
Plastic
Material quality
Polyamide (PA)
