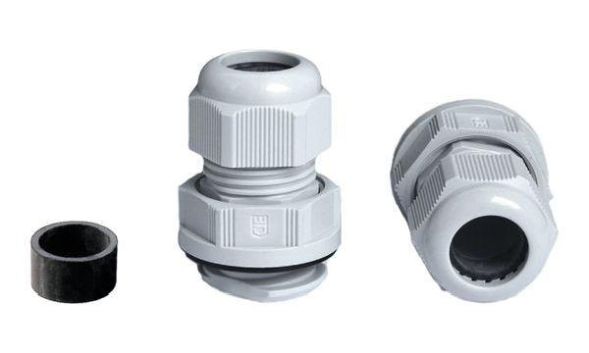

Quick and easy installation without special tools, easy installation and removal from one side, no locking on the inside of the housing, advantageous for use in hard-to-reach places, can be installed in through holes with dimensions according to DIN EN 50262, no internal thread required, continuously adjustable for wall thicknesses from 1 - 4 mm, integrated strain relief, large sealing and clamping range, metric, plastic, RAL9005
| Property | Value |
| Wrench size: | 32 mm |
| Thread pitch: | 1.5 mm |
| Nominal thread size metric/PG: | 25 |
| Suitable for cable diameters: | 11 to 17 mm |
| Protection class (IP): | IP68 |
| Operating temperature: | -20 to 100 °C |
| Halogen-free: | no |
| Thread type: | metric |
| Design: | straight |
| Color: | black |
| Material: | plastic |
| With strain relief: | yes |
| Surface: | untreated |
| Type of seal: | Sealing ring |
| Impact-resistant: | yes |
| Bending protection: | no |
| RAL number: | 9005 |
| Material quality: | Polyamide (PA) |
| Glass fiber reinforced: | yes |
| With lock nut: | no |
| Multiple sealing insert: | no |
| Flat cable screw connection: | no |
| Dividable screw connection: | no |
| Explosion-tested version: | no |
| For Ex zone gas: | without |
| For Ex zone dust: | without |
| Snaps into opening: | yes |
| For armored cables: | no |
| EMC version: | no |
| Shielded: | no |
Features
Impact resistant
Yes
Explosion-tested version
No
Nominal thread size metric/PG
25
Fiberglass reinforced
Yes
Shielded
No
Suitable for cable diameter
11 to 17mm
Wrench size
32 mm
HAB
K341-1025-02 M25 black
Minimal order
50 pcs
Manufacturer
HAN
K341-1025-02
GTIN
4024092176104
Version
Straight
EMC version
No
Operating temperature
-20 to 100 °C
Color
Thread type
Metric
Thread
1.5 mm
Halogen free
No
With strain relief
Yes
Surface
Untreated
RAL number
9005
IP protection)
IP68
Material
Plastic
Material quality
Polyamide (PA)
