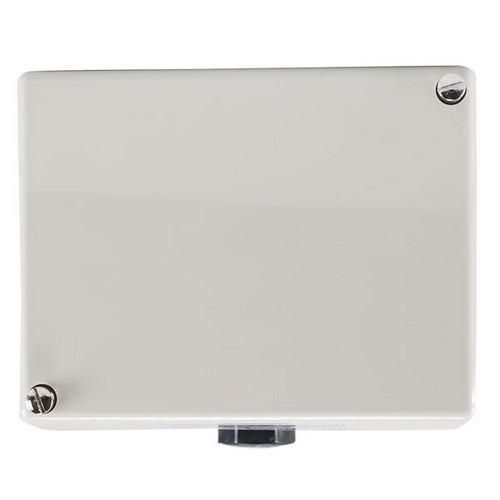

Thanks to its impact-resistant housing with high-quality plastic cover and die-cast aluminum base, the mechanical surface-mounted double thermostat is very robust and can also be used under harsh conditions. The device consists of two temperature monitors, where the desired switch-off temperature can be set independently of one another on a scale using a screwdriver after removing the housing cover. <,br>,The temperature monitors are characterized by a high switching point accuracy of +0/-1.5% in the upper third of the scale and have a switching difference (hysteresis) of approx. 3 to 4% of the scale circumference. After the switch-off point is reached, the temperature monitors switch off and after the temperature falls below the switch-off temperature by the value of the switching difference, they automatically return to their original state. A decisive advantage is that no additional auxiliary power is required to measure the temperature. The electrical connection is made via screw terminals directly to the built-in microswitches, which can directly switch a maximum permissible switching capacity of AC 230 Volt / 10 A. <,br>,The measuring systems used work according to the liquid expansion principle and can be used without problems up to a maximum permissible sensor temperature of 125 °C. The smooth round sensors made of copper each have a diameter of 6 mm and a sensor length of approx. 107 mm. The two long-distance lines of the thermostat are also made of copper and can be laid flexibly provided a bending radius of 5 mm is observed. The maximum permissible ambient temperature on the housing (protection class IP54) is 80 °C.<,br>,The thermostat can be used very flexibly and is used in heating, air conditioning and ventilation technology as well as in the plastics industry, apparatus and mechanical engineering as well as in furnace construction, in district heating transfer stations and for temperature monitoring in laboratories and climate cabinets. The device is approved in accordance with DIN EN 145
| Property | Value |
| Changeover contact: | 2 |
| Connection: | Screw connection |
| Sensor design: | Capillary tube |
| Adjustable switch-off temperature: | 100 °C |
| Adjustable switch-on temperature: | 0 °C |
| Electronic design: | no |
| Explosion-proof: | no |
| Suitable as a limiter: | no |
| Suitable as a monitor: | yes |
| Suitable as a 2-point controller: | no |
| Device design: | Mounted device |
| Max. Operating temperature: | 125 °C |
| Temperature switching difference: | 3 °C |
| Protection class (IP): | IP54 |
| Protection class (NEMA): | other |
