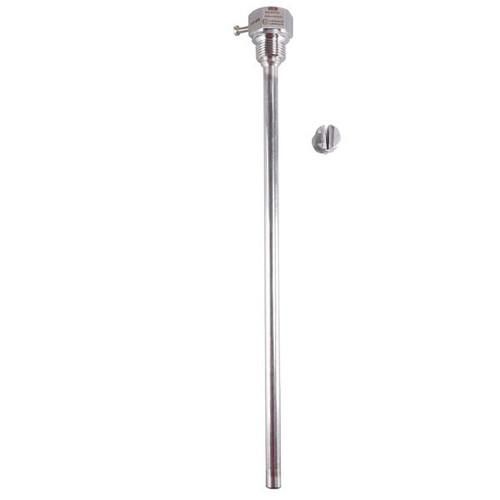

JUMO 60003378 605057/20-13-20-300-10/374 ATEX protective sleeve

The protective sleeve for screwing in made of stainless steel (material no. 1.4571) has a diameter of 10 mm and is suitable for a sensor with a diameter of 6 mm. Fastening is via a G 1/2 Form A thread in accordance with DIN 3852/2. The protective sleeve is suitable for Ex zone separation due to its wall thickness of 1.5 mm. The sleeve has an ATEX approval in accordance with EN 600079 and is supplied with an acceptance test certificate 3.1 in accordance with DIN EN 10204. The maximum permissible pressure load at a temperature of 100°C is 74 bar. The sleeve can be used in potentially explosive areas.
