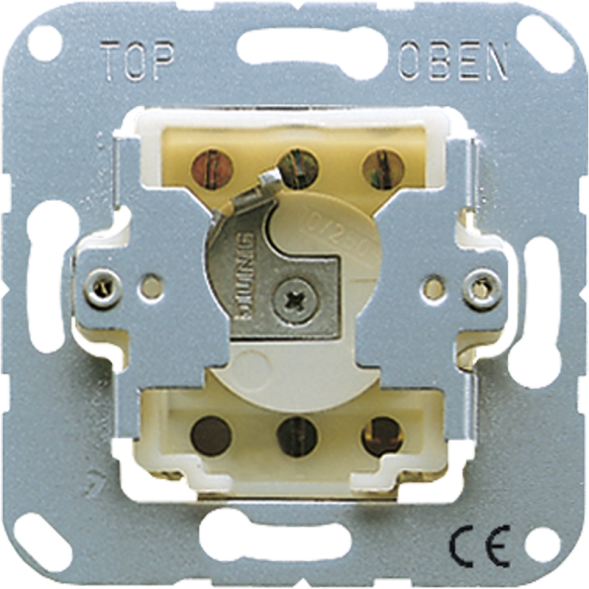

Key switch with dismantling protection, 10 AX 250 V ~, blind reversing switch, 2-pole. (2 drives), without claws with screw terminals for rigid and flexible conductors up to 2.5 mm2
Connection terminals in accordance with DIN VDE 0632 (EN 60669)
(screw fastening, without fastening claws)
for profile half cylinders with approx. 40 mm total length (DIN 18252), e.g. item nos.: 28, 28 G1
Removal of the key switch cover is only possible when the lock is in the unlocking position.
| Property | Value |
| Suitable for protection class (IP): | IP20 |
| Type of operation: | Key |
| Number of Rocker switches: | 1 |
| Mounting type: | Flush-mounted |
| Push button: | no |
| Composition: | Base element |
| Mounting type: | Screw fastening |
| Rated voltage: | 250 V |
| Switching current for fluorescent lamps: | 10 AX |
| Feedback contact: | no |
| Washing machine switch: | no |
| Connection type: | screw terminal |
| Lighting: | no |
| Rated current: | 10 A |
| Installation depth: | 32 mm |
| Device width: | 71 mm |
| Device height: | 71 mm |
| With mounting plate: | no |
Features
Insert Module Type
Blind covers
Feedback contact
No
Number of actuating rockers
1
Lighting
No
Switching current for fluorescent lamps
10 AX
Push button
No
Washing machine switch
No
Manufacturer
HAN
104.28
GTIN
4011377212909
Connection type
Screw terminal
Operating mode
Key
Mounting type
Screw fastening
Rated current
10A
Installation depth
32 mm
Suitable for protection class (IP)
IP20
Device width
71 mm
Device height
71 mm
With mounting plate
No
Mounting type
Flush-mounted
Nominal voltage
250V
Compilation
Basic element
