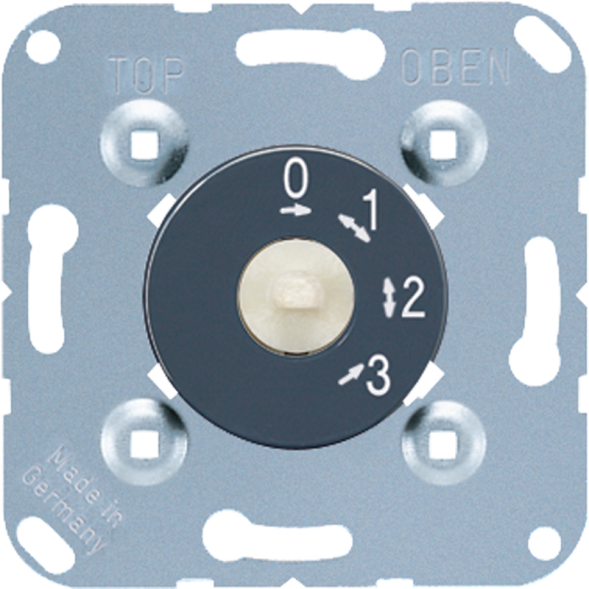

Rotary switch, 3-stage switch with OFF position 16 AX 250 V ~ 250 V ~, anthracite with screw terminals for rigid and flexible conductors up to 4 mm2
Connection terminals in accordance with DIN VDE 0632 (EN 60669)
(screw fastening, without fastening claws)
Not suitable for installation in surface-mounted caps
Installation instructions: No plaster compensation possible. Insert must be installed flush with the wall. The support ring must not be wallpapered over.
| Property | Value |
| Mounting type: | Flush-mounted |
| Operating type: | Rotary knob |
| Composition: | Base element |
| Halogen-free: | yes |
| Rated voltage: | 250 V |
| Mounting type: | Mounting with screw |
| Rated current: | 16 A |
Features
Manufacturer
HAN
1101-4
GTIN
4011377116115
Operating mode
rotary knob
Mounting type
Fastening with screw
Rated current
16A
Halogen free
Yes
Mounting type
Flush-mounted
Nominal voltage
250V
Compilation
Basic element
