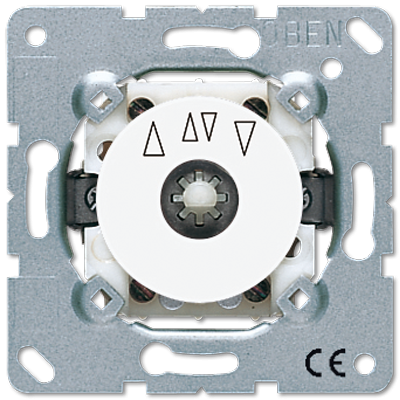

Blind rotary switch, reversing switch/button, 1-pin. (1 drive), 10 A 250 V ~, alpine white, flush-mounted with screw terminals for rigid and flexible conductors up to 2.5 mm2
Connection terminals in accordance with DIN VDE 0632 (EN 60669)
Can be used as a button with the included locking device.
| Property | Value |
| Design: | Switch 1-pole |
| Suitable for protection class (IP): | IP20 |
| Operating method: | Rotary knob |
| Nominal voltage: | 250 V |
| Halogen-free: | yes |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | no |
| Composition: | Base element |
| Electrical and mechanical locking: | no |
| Mechanically operated: | yes |
| Electronically operated: | no |
| Fastening type: | Claw/screw fastening |
| Rated current: | 10 A |
| Number of poles: | 1 |
Features
Insert Module Type
Blind covers
HAB
1234.10WW
Manufacturer
HAN
1234.10WW
GTIN
4011377177321
Version
Operating mode
rotary knob
Mounting type
Claw/screw fastening
Rated current
10A
Suitable for protection class (IP)
IP20
Halogen free
Yes
Mounting type
Flush-mounted
Nominal voltage
250V
Number of poles
1
Text field/label area
No
Compilation
Basic element
