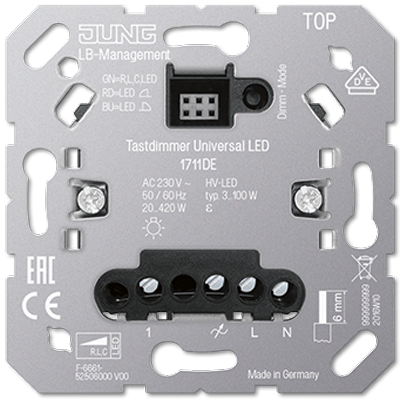

Jung 1711DE touch dimmer universal LED, with extension input

Touch dimmer universal LED, with extension input with extension input
for attachments eNet item no.: FM .. 1700 .., FM .. 1701 ..
for attachments LB-Management item no.: .. 1700 .., .. 1701 .., .. 1750 D .., .. 1751 BT .., .. 17180 .., .. 17280 .., .. 17181 .., .. 17281 .., DWPM 17360 ..
for attachments KNX RF item no.: .. 10911 ST RF .., .. 10921 ST RF ..
Intended use
Switching and dimming of lighting
Operation with suitable attachment
Installation in device box with dimensions according to DIN 49073

Product features
Device works according to the leading or trailing edge principle
Automatic or manual setting of the dimming principle suitable for the load
Display of the set operating mode via LED
Device can be operated without a neutral conductor
Switching on via lamp-friendly soft start
Switching on with last set brightness or saved switch-on brightness
Switch-on brightness can be permanently saved
Minimum brightness can be permanently saved
Connection of extensions possible
Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
Electronic overtemperature protection
Test operation for functional testing
Hotel card function
Performance extension using power additives (item no. ULZ 1755 REG) possible
Optional accessories: LED compensation module, item no.: KM LED 230 U
Nominal voltage: AC 230 V ~
Mains frequency: 50/60 Hz
Standby power depending on attachment: approx. 0.1 ... 0.5 W
Power loss: approx. 4 W
Ambient temperature: 5 ... +45 °C
Connected load at 25 °C
Incandescent lamps: 20 ... 420 W
HV halogen lamps: 20 ... 420 W
Electronic transformers: 20 ... 420 W
Electronic transformers with NV LED: typ. 20 ... 100 W
Inductive transformers: 20 ... 420 VA
Inductive Transformers with NV-LED: typically 20 ... 100 VA
HV-LED lamps dimmable: typically 3 ... 100 W
Compact fluorescent lamps dimmable: typically 3 ... 100 W
Operating mode LED trailing edge: connected load for HV-LED lamps typically 3 ... 400 W, electronic transformers with NV-LED typically 20 ... 200 W.
Ohmic-capacitive: 20 ... 420 W
Capacitive-inductive: not permitted
Ohmic-inductive: 20 ... 420 VA
Ohmic and HV-LED: typically 3 ... 100 W
Ohmic and compact fluorescent: typically 3 ... 100 W
Power supplements: see power supplement instructions
Connection: Screw terminals
single-wire: 1 x 0.5 ... 4.0 mm2 2 x 0.5 ... 2.5 mm2
fine-wire without wire end ferrule: 1 x 0.5 ... 4.0 mm2 2 x 0.5 ... 2.5 mm2
fine-wire with wire end ferrule: 1 x 0.5 ... 4.0 mm22 x 0.5 ... 1.5 mm2
Number of extensions
2-wire extension 1720 NE: unlimited
3-wire extension 1723 NE: 10
3-wire rotary extension 1733 DNE: 10
Buttons: unlimited
Total length of extension cable: max. 100 m
Total length of load cable: max. 100 m
