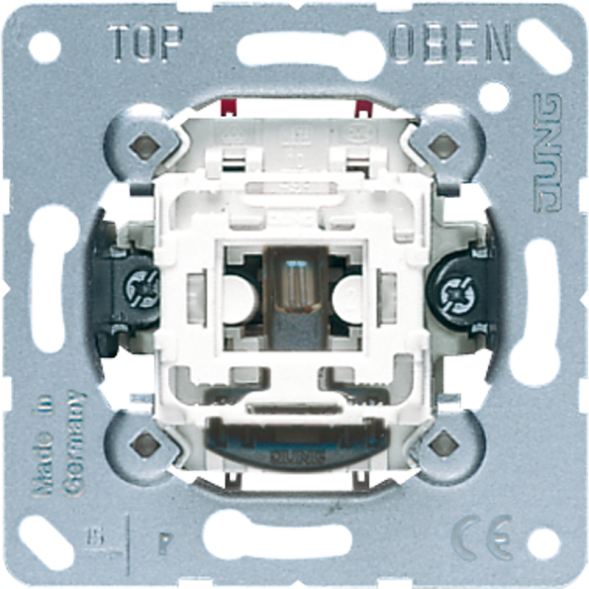

Rocker control switch, 10 AX 250 V ~, universal on-off with spring terminals for rigid conductors up to 2.5 mm2
Connecting terminals according to DIN VDE 0632 (EN 60669)
N-conductor required
with glow lamp item no. 90
without 'fastening claw': item no. with 'E', e.g. 506 KOEU
Glow lamp can be replaced by LED lamp item no.: 90-LED.. (230 V) or 961248 LED.. (low voltage).
| Property | Value |
| Suitable for protection class (IP): | IP20 |
| Circuit type: | Toggle switch |
| Operating type: | Rocker/button |
| Number of rocker switches: | 1 |
| Mounting type: | Flush-mounted |
| Push button: | no |
| Composition: | Base element |
| Mounting type: | Claw/screw fastening |
| Halogen-free: | yes |
| Rated voltage: | 250 V |
| Switching current for fluorescent lamps: | 10 AX |
| Feedback contact: | no |
| Washing machine switch: | no |
| Connection type: | Plug-in terminal |
| Lighting: | yes |
| Lighting type: | Glow lamp |
| Lighting function: | Control and orientation |
| Installation depth: | 32 mm |
| Device width: | 71 mm |
| Device height: | 71 mm |
| With mounting plate: | no |
| Text field/label area: | no |
Features
Feedback contact
No
Number of actuating rockers
1
Circuit type
Changeover switch
Lighting
Yes
Switching current for fluorescent lamps
10 AX
Push button
No
Washing machine switch
No
Lighting function
Control and orientation
Manufacturer
HAN
506KOU
GTIN
4011377262409
Connection type
Plug-in terminal
Operating mode
Rocker/Button
Mounting type
Claw/screw fastening
Installation depth
32 mm
Suitable for protection class (IP)
IP20
Device width
71 mm
Device height
71 mm
Halogen free
Yes
With mounting plate
No
Mounting type
Flush-mounted
Nominal voltage
250V
Text field/label area
No
Compilation
Basic element
