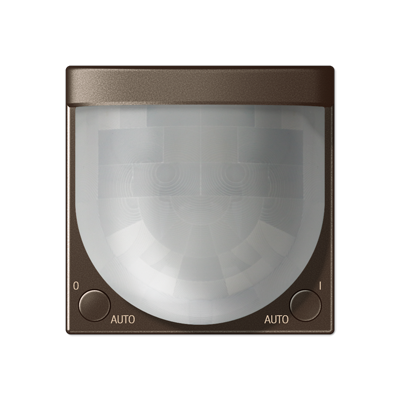

Universal automatic switch 2.20 m, IP44, Series A, mocha for inserts 'Light' Item no.: 1701 SE, 1701 PSE, 1702 SE, 1704 ESE, 1710 DE, 1711 DE, 1713 DSTE, 1723 NE, 1708 IE
With sealing set Item no.: AS A 50 DS and program-specific 'IP 44 frame', protection level IP 44 is guaranteed.
IP 44 installation permitted indoors and outdoors
expected to be available until June 1st, 2023
Intended use
Automatic switching of lighting, depending on heat movement and ambient brightness
Operation with system insert for switching or dimming or 3-wire extension
Wall mounting on System use
Product features
Functions directly on the attachment
Extension of the detection area in combination with 3-wire extension
Permanently on, permanently off
Operation with 2- or 3-wire extension, rotary extension or button
Dimming insert can be dimmed via extension
Reset to factory settings
Functions via Clever Config app
Brightness threshold adjustable
Setting the sensitivity of the PIR sensors
Follow-up time adjustable
On or off for 0.5 - 5 hours
Switch-off warning
Dynamic follow-up time
Presence simulation
Alarm function
Time switch function
Operating lock
Reduced basic sensitivity
Automatic summer/winter time changeover
Test operation
Programming of up to 16 individual Switching times
In combination with a switching insert
Short-term operation
In combination with a dimming insert
Switching on with the last set brightness or saved switch-on brightness
Setting the minimum brightness
Setting the maximum brightness
Hotel function
Night light function with period for brightness reduction, with dimming insert
Ambient temperature: 20 ... +45 °C
Storage/transport temperature: 25 ... +70 °C
Brightness setting: approx. 5 ... 500 lx (and daytime operation)
Sensitivity: 0, 25, 50, 75, 100 %
Follow-up time: approx. 10 s ... 60 min
Installation height: 1.10 / 2.20 m
Detection angle: 180°
Detection range (installation at 2.20 m)
Sensitivity 25%: max. 7 m
Sensitivity 50%: max. 11 m
Sensitivity 75%: max. 13 m
Sensitivity 100%: max. 15 m
Detection range (mounting at 1.10 m)
Sensitivity 25%: max. 7 m
Sensitivity 50%: max. 8 m
Sensitivity 75%: max. 9 m
Sensitivity 100%: max. 10 m
Radio frequency: 2.402 ... 2.480 GHz
Transmission power: max. 2.5 mW (class 2)
Transmission range: typically 10 m
Material: painted thermoplastic
Dimensions (W x H): 55 x 55 mm
| Features | Value |
| Mounting height: | 2.2 m |
| Mounting type: | Flush-mounted |
| Design: | Motion detector |
| Constant light control: | no |
| Adjustable response sensitivity: | yes |
| Horizontal detection angle: | 180.0 ° |
| Creep-under protection/rear field monitoring: | yes |
| Min. Duty cycle: | 2 s |
| Max. duty cycle: | 2 min |
| Max. range to one side: | 11 m |
| Max. Frontal range: | 15 m |
| Detection field diameter on floor: | 12 m |
| HVAC control: | no |
| Response brightness adjustable: | yes |
| Networkable: | yes |
| Teach function for response brightness: | yes |
| Dimming function with dimming insert: | yes |
| Suitable for protection class (IP): | IP44 |
| Suitable for wireless transmission: | no |
| Color: | other |
| Staircase monitoring: | no |
| Halogen-free: | yes |
| Animal corridor: | no |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Self-learning switch-off delay: | no |
| Operating mode switch: | yes |
