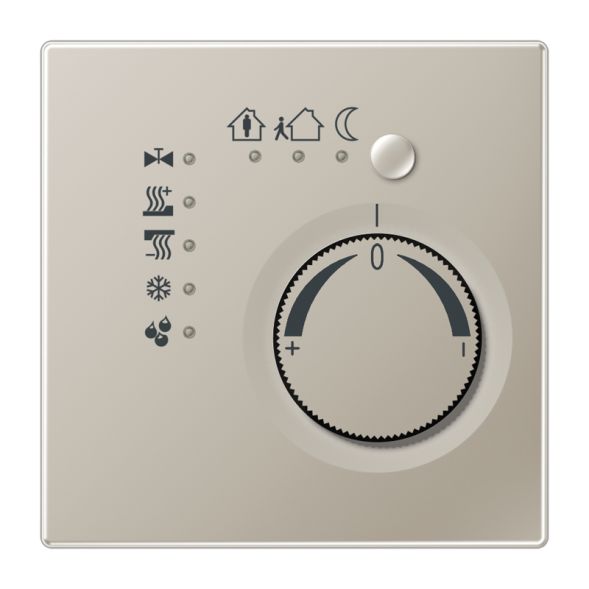

![CDATA[with integrated bus coupler with adjusting wheel for setpoint adjustment Full functionality is supported from ETS3.0d or higher. ETS product family Physical sensors Product type Temperature Intended use Individual room temperature control in KNX installations Installation in device box with dimensions according to DIN 49073 Product features Measurement of the room temperature and comparison with the setpoint temperature Setpoint specification by selecting the operating mode Operating modes Comfort, standby, night mode, frost/heat protection Heating and cooling mode Heating and cooling with basic and additional level Adjusting wheel for setpoint correction Presence button Status LEDs KNX Medium: TP 256 Nominal voltage KNX: DC 21 ... 32 V SELV Current consumption KNX: max. 10 mA Connection KNX: connection terminal Ambient temperature: −5 ... +45 °C Storage/transport temperature: −25 ... +70 °C]]>
Features
Surface
frosted
Material
metal
Compatible with Google Assistant
N/A
Thread
No
Other bus systems
-
Operation via Bluetooth
No
EAN
4011377021471
Siemens LOGO!
No
Hager KNXeasy
No
KNX-Secure
No
Mbus
No
Modbus TCP
No
RGB lighting control
No
Samsung SmartThings
N/A
Wi-Fi
No
Zigbee
No
integrated actuator
No
Protection class \(IP\)
IP20
Room temperature controller integrated
Yes
With Netatmo
No
Amazon Alexa
N/A
BAB-Tec
No
CO2 sensor
No
DALI Device Type
-
Gira One
No
JUNG HOME
No
KNX-RF
No
KNX-TP
Yes
Matter
No
Modbus
No
RGB status LED
No
Shelly
No
Theben LUXORliving
No
Wiser Home
No
Fits in 55 switch program
No
Integrated binary input
No
Manufacturer type
ES2178
Proximity sensor
No
Transmission type
Cable
Apple HomeKit
N/A
Casambi
No
Customizable
No
ENOcean
No
KNX USB interface
Yes
Modbus RTU
No
VOC sensor
No
DALI
No
Class
touch sensors
Color temperature control
No
Free@home
No
infrared sensor
No
installation location
Wall
status LED, control light
Yes
Suitable for installation in switch program
Yes
Temperature sensor
Yes
HAN
ES2178
Manufacturer
YOUNG
Color
silver
GTIN
4011377021471
Operating mode
rotary knob
Mounting type
flush-mounted
Label field
No
Dimming DALI-2
No
With display
No
Series
LS 1912 | LS 990 | LS Cube | LS Design | LS Plus | LS Zero
