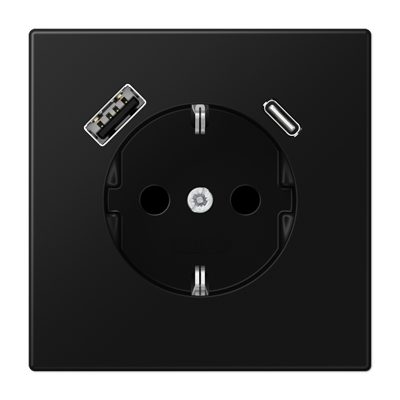

SCHUKO socket 16 A 250 V ~, with USB charger 1 x type A + 1 x type C, integrated increased contact protection, SAFETY+, LS series, matt graphite black with integrated increased contact protection (Safety Plus)
with 1 USB socket type A and 1 USB socket type C
with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2
Connection terminals according to DIN VDE 0620
Installation in device box with dimensions according to DIN 49073
Depth of the device box (internal dimension): min. 57 mm
Material: painted thermoplastic
| Property | Value |
| Number of units: | 1 |
| Color: | black |
| Suitable for protection class (IP): | IP20 |
| Nominal voltage: | 250 V |
| Nominal current: | 16 A |
| Lockable: | no |
| With increased contact protection: | yes |
| With hinged lid: | no |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | no |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Overvoltage protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| Connection type: | Plug-in terminal |
| With Fine fuse: | no |
| Mounting type: | claw/screw fastening |
| Material: | plastic |
| Material quality: | thermoplastic |
| Surface finish: | matt |
| Device width: | 70 mm |
| Device height: | 70 mm |
| With loop-through function: | no |
| With On/off switch: | no |
| With built-in USB power supply: | yes |
| With function lighting: | no |
| With orientation lighting: | no |
| Transparent: | no |
| Protective contact: | yes |
| Protective conductor contact round: | no |
| Number of active contacts (round): | 2 |
| With Signal lamp: | no |
| Number of phases: | 1 |
| Antibacterial treatment: | no |
Features
Color
Black
HAB
LS1520-15CASWM with USB Type AC
Manufacturer
HAN
LS1520-15CASWM
GTIN
4011377187627
Lockable
No
Connection type
Plug-in terminal
Antibacterial treatment
No
Number of Units
1
Number of phases
1
Number of active contacts (approx.)
2
Surface finish
Frosted
Ejection mechanism
No
Mounting type
Claw/screw fastening
Color
Residual current protection
No
Suitable for protection class (IP)
IP20
Device width
70 mm
Device height
70 mm
Halogen free
Yes
With loop-through function
No
With on/off switch
No
With micro fuse
No
With functional lighting
No
With hinged lid
No
With orientation lighting
No
With signal lamp
No
With built-in USB power supply
Yes
With increased contact protection
Yes
Mounting type
Flush-mounted
Nominal voltage
250V
Rated current
16A
Protective contact
Yes
Protective conductor contact round
No
Special power supply
Without special power supply
Text field/label area
No
Transparent
No
Twisted central insert
No
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
