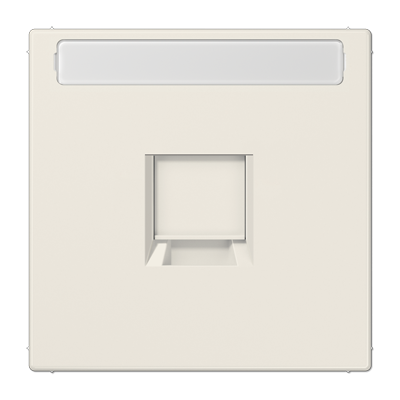

Cover (snapped) for modular jack sockets 1-way, EMT, AMP, MTRJ, with labeling field, thermoplastic, LS series, white (complete with supporting ring, screw fastening)
Closing flap with return spring
for modular jack sockets
TE Connectivity (Tyco Electronics / AMP NETCONNECT)
for cable Ø max. 10 mm:
EMT Cat. 5e, 180° Item no. 0-0188650-5
EMT Cat. 5e, 90° Item no. 0-0188650-6
for cable Ø max. 6.5 mm:
EMT Cat. 5e, 180° Item no. 0-0338038-1
EMT Cat. 5e, 90° Item no. 0-0338038-2
Toolless Jack Cat. 3 unshielded: Item no. 0-1116603-x
Toolless Jack Cat. 5e unshielded: Item no. 0-1116604-x,
Toolless Jack Cat. 5e shielded: Item no. 0-1339015-1
Toolless Jack Cat. 6 unshielded: Item no. 0-1116605-x,
Toolless Jack Cat. 6 shielded: Item no. 0-1339016-1
MTRJ-LWL-Jack (fiber optic cable): Item no. 1278414-1, deep box (at least 62 mm) required
for 1 socket
| Property | Value |
| Mounting type: | clamp fastening |
| Color: | white |
| RAL number (similar): | 1013 |
| Device height: | 70 mm |
| Device width: | 70 mm |
| Labeling field: | with labeling field |
| Use: | Modular jack |
| With dust protection: | yes |
| Mounting type: | Surface-mounted |
| With hinged lid: | no |
| Suitable for protection class (IP): | IP20 |
| Composition: | other |
| Support ring: | yes |
| With print: | no |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen-free: | yes |
| Surface finish: | glossy |
| With strain relief: | no |
| Lamp terminal: | no |
| Transparent: | no |
| Outlet direction: | straight |
| With Sockets/couplings: | no |
| Suitable for number of sockets/couplings: | 1 |
| Housing shielded: | no |
