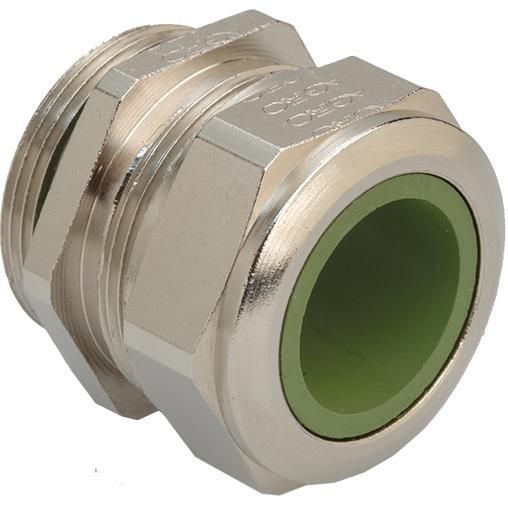

Thread length: Short, clamping technology: compression technology, operating temperature: -40°C / +200°C, technical features: for high temperatures, contacting: contact sleeve
| Property | Value |
| Wrench size: | 13 mm |
| Thread pitch: | 1.5 mm |
| Nominal thread size metric/PG: | 10 |
| Suitable for cable diameters: | 4.0 to 6.0 mm |
| Protection class (IP): | IP68 |
| Operating temperature: | -40 to 200 °C |
| Halogen-free: | no |
| Thread length: | 5 mm |
| Thread type: | metric |
| Design: | straight |
| Material: | metal |
| With strain relief: | yes |
| Surface: | nickel-plated |
| Type of Seal: | Sealing ring |
| Impact resistant: | yes |
| Bending protection: | no |
| Material quality: | Brass |
| Fiberglass reinforced: | no |
| With lock nut: | no |
| Multiple sealing insert: | no |
| Flat cable gland: | no |
| Dividable Screw connection: | no |
Features
Impact resistant
Yes
Nominal thread size metric/PG
10
Fiberglass reinforced
No
Suitable for cable diameter
4.0 to 6.0mm
Wrench size
13 mm
HAB
1080.10.91.060
Manufacturer
HAN
1080.10.91.060
GTIN
7611614233338
Version
Straight
Operating temperature
-40 to 200 °C
Thread type
Metric
Thread length
5 mm
Thread
1.5 mm
Halogen free
No
With strain relief
Yes
Surface
Nickel-plated
IP protection)
IP68
Material
Metal
Material quality
Brass
