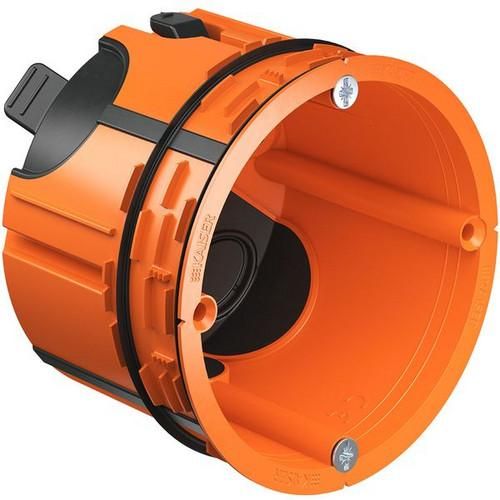

9264-12 O-Range ECON Fix airtight hollow wall device junction box Manufacturer article number: 9264-12, Manufacturer article name: 9264-12 O-Range ECON Fix airtight
| Property | Value |
| With screws: | yes |
| Depth: | 62 mm |
| Length: | 68 mm |
| Width: | 68 mm |
| Material: | Plastic |
| Color: | orange |
| Halogen-free: | no |
| Protection class (IP): | IP20 |
| Shape: | round |
| Diameter: | 68 mm |
| Mounting type: | Hollow wall |
| Number of entries: | 8 |
| Design: | Single |
| Construction: | Device junction box/box |
| With nail tabs: | no |
| Windproof: | yes |
| Introduction from the rear: | yes |
| Can be coupled: | yes |
| Housing feed-through through sealing membrane: | yes |
| Cover fastening: | screwed |
| Functional integrity: | without |
| For number of device inserts: | 1 |
| Surface: | untreated |
| Fastening of devices: | screws |
| For pipe diameter: | 20/25 mm |
| Pipe locking: | no |
| Clamp fixed in position: | no |
| Equipment: | without |
| Light hook fastening: | no |
| Socket: | other |
| With shielding: | no |
| Housing feedthrough through knockout opening: | no |
| With rotating ring: | no |
| Special application: | other |
| Housing feedthrough through pipe socket: | no |
| Housing feedthrough through stepped membrane: | no |
| Pipe locking optional: | no |
| Version Lid: | without |
| Transparent lid: | no |
Features
HAB
9264-12 O-Range ECON Fix airtight
Minimal order
25 pcs
Manufacturer
HAN
9264-12
GTIN
4013456551022
Version
Singles
Cover design
Without
Design
Device junction box
Width
68 mm
Diameter
68 mm
Color
Shape
Around
Functional preservation
Without
Halogen free
No
Length
68 mm
Mounting type
Cavity wall
Surface
Untreated
IP protection)
IP20
Depth
62 mm
Material
Plastic
