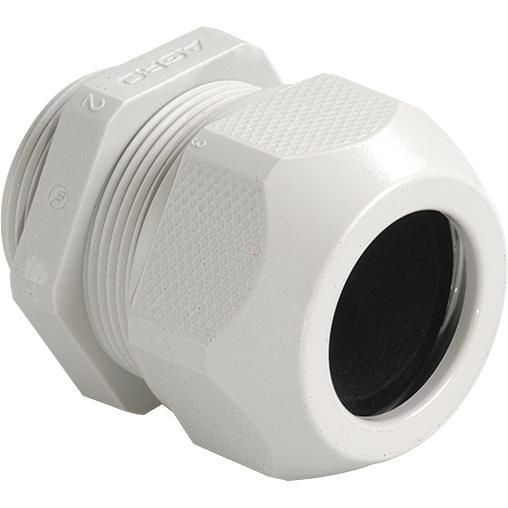

Cable gland Syntec Kst. M32x1.5 cable 17.0-25.0mm (UL 19.5-23.0mm) light gray RAL 7035
| Property | Value |
| Wrench size: | 42 mm |
| Thread pitch: | 1.5 mm |
| Nominal thread size metric/PG: | 32 |
| Suitable for cable diameters: | 17.0 to 25.0 mm |
| Protection class (IP): | IP68 |
| Operating temperature: | -30 to 100 °C |
| Halogen-free: | yes |
| Thread length: | 10 mm |
| Thread type: | metric |
| Design: | straight |
| Material: | plastic |
| With strain relief: | yes |
| Type of seal: | sealing ring |
| Impact-resistant: | yes |
| Bending protection: | no |
| RAL number: | 7035 |
| Material quality: | Polyamide (PA) |
| Fiberglass reinforced: | no |
| With lock nut: | no |
| Multiple sealing inserts: | no |
| Flat cable screw connection: | no |
| Dividable screw connection: | no |
Features
Impact resistant
Yes
Nominal thread size metric/PG
32
Fiberglass reinforced
No
Suitable for cable diameter
17.0 to 25.0mm
Wrench size
42 mm
HAB
SYNTEC plastic RAL7035
Minimal order
20 pcs
Manufacturer
HAN
1555.32.25
GTIN
7611614078021
Version
Straight
Operating temperature
-30 to 100 °C
Thread type
Metric
Thread length
10 mm
Thread
1.5 mm
Halogen free
Yes
With strain relief
Yes
RAL number
7035
IP protection)
IP68
Material
Plastic
Material quality
Polyamide (PA)
