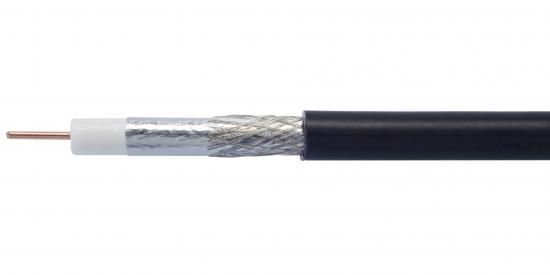

LCM 14A+ coaxial cable, 500 m coaxial cable 10.4 mm, black, halogen-free/flame-retardant, 500 m disposable drum, shielding: typically 120 dB, meter mark, attenuation/100 m: 13 dB (860 MHz), 21 dB (2150 MHz) inner conductor: 1.63 mm Cu, insulation: 7.2 mm Cell-PE, outer conductor: Al foil + braid, UV-resistant, fire class according to BauPVO EN 50575: Dca s1a d1a1
| Property | Value |
| Sheath color: | black |
| Outer diameter approx.: | 10.4 mm |
| Dielectric: | Polyethylene, foamed (Foam PE) |
| Outer conductor shape: | Foil + braid |
| Characteristic impedance: | 75 Ohm |
| Inner conductor diameter: | 1.63 mm |
| UV-resistant: | yes |
| Sheath material: | Polyvinyl chloride (PVC) |
| Outer conductor diameter: | 10.4 mm |
| Inner conductor material: | Copper |
| Inner conductor class: | Class 1 = single wire |
| Outer conductor material: | Copper |
| Reinforcement: | no |
| Permissible external cable temperature during assembly/handling: | -25 to 55 °C |
| Permissible External cable temperature after installation without vibration: | -40 to 70 °C |
| Halogen-free according to EN 60754-1/2: | yes |
| Min. permissible bending radius, flexible use with forced guidance: | 220 mm |
| Inner conductor surface: | bare |
| Outer conductor surface: | tinned |
| Number of shielding layers: | 2 |
| Specification of sheath material: | other |
| Fire behavior class according to EN 13501-6: | Dca |
| Smoke development class according to EN 13501-6: | s1a |
| Drip behaviour class according to EN 13501-6: | d1 |
| Acid development class according to EN 13501-6: | a1 |
| Min. permissible bending radius, flexible use/free movement: | 220 mm |
| Min. permissible bending radius, stationary use/fixed installation: | 110 mm |
| Laying in the ground: | no |
Features
Sheath material
Polyvinyl chloride (PVC)
Outer diameter approx.
10.4 mm
HAB
LCM 14A+ 500m reel
Minimal order
500 meters
Manufacturer
HAN
21510031
GTIN
4021121546846
Coat color
Black
UV-resistant
Yes
