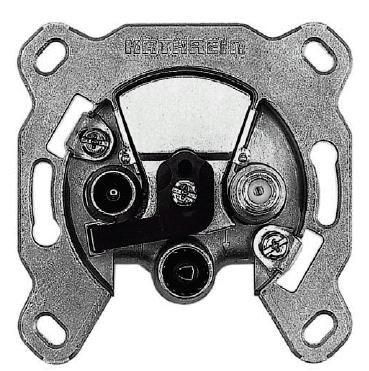

Modem sockets (broadband). Comply with: EN 50083-1. EN 50083-2. For interactive CATV/HFC networks. Very high decoupling between the modem connection and the TV/radio connection prevents interference with TV/radio reception by the modem. Ingress noise blocking function prevents unwanted interference signals from entering the subscriber terminals. Broadband signal distribution to the TV and radio connection. Integrated solution without plug-on filters, thus high protection of the system against subsequent manipulation by the subscriber. Single connection box for spur line and star distribution systems with very low connection attenuation (6 dB). Stable die-cast housing. With screw and claw fastening, suitable for flush-mounted boxes 55.65 mm. Can be combined with almost all installation programs. Connections: TV: IEC (Sti). Radio: IEC (Bu). Modem: F (Bu). Shielding efficiency: 5,300 MHz > 85 dB. 300,470 MHz > 80 dB. 470.862 MHz > 75 dB.
| Property | Value |
| Design: | Modem socket |
| Suitable for remote power supply: | no |
| Suitable for cable modem: | yes |
| Mounting type: | Flush-mounted |
| Number of modules (with modular construction): | 3 |
| Cover: | without |
| Mounting type: | Claw/screw fastening |
| Color: | Aluminium |
| Material: | other |
| Material quality: | Stainless steel |
| Halogen-free: | no |
