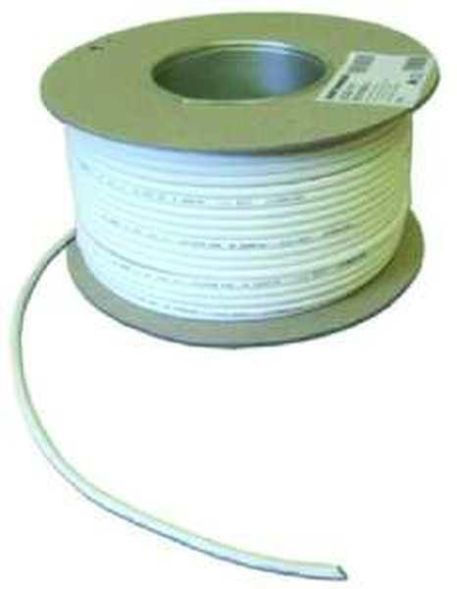

for domestic installation, impedance: 75 Ohm, insulation made of special PE mixture, foamed by gas injection, meter marking, glued foil, lead-free and without silicone, meets: EN 50117/shielding class A+, approved by KDG/Vodafone Kabel Deutschland, dibkom-certified material, easier plug installation thanks to glued foil
| Property | Value |
| Sheath color: | white |
| Outer diameter approx.: | 6.9 mm |
| Dielectric: | Polyethylene, foamed (Foam PE) |
| Outer conductor form: | Foil + braid |
| Characteristic impedance: | 75 Ohm |
| Inner conductor diameter: | 1.13 mm |
| UV-resistant: | yes |
| Sheath material: | Polyvinyl chloride (PVC) |
| Outer conductor diameter: | 4.8 mm |
| Inner conductor material: | copper |
| Inner conductor class: | Class 1 = single-wire |
| Outer conductor material: | copper |
| Reinforcement: | no |
| Permissible external cable temperature during assembly/handling: | 40.0 °C |
| Permissible external cable temperature after assembly without vibration: | 70.0 °C |
| Halogen-free according to EN 60754-1/2: | no |
| Min. permissible bending radius, flexible use with forced guidance: | 70 mm |
| Inner conductor surface: | bare |
| Outer conductor surface: | tinned |
| Number of shielding layers: | 3 |
| Specification of sheath material: | other |
| Fire behavior class according to EN 13501-6: | Eca |
| Smoke development class according to EN 13501-6: | without |
| Drip behavior class according to EN 13501-6: | without |
| Acid development class according to EN 13501-6: | without |
| Min. permissible bending radius, flexible use/free movement: | 45 mm |
| Min. permissible bending radius, stationary use/fixed installation: | 35 mm |
| Laying in the ground: | no |
Features
Sheath material
Polyvinyl chloride (PVC)
Outer diameter approx.
6.9 mm
Minimal order
250 meters
Manufacturer
HAN
21510026
GTIN
4021121531491
Coat color
White
UV-resistant
Yes
