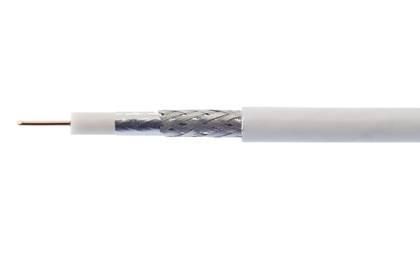

Coaxial cable, BauPVO EN 50575-B2ca s1a d0 a1, 250 m roll-off box, 6.9 mm, white PVC, shielding level typically 130 dB, shielding class A Plus Plus, meter marking, construction typically 1, 13 Cu 4.8 Al CuSn Al, foil bonded, KDG Vodafone approval, use in escape routes, hospitals, kindergartens, etc.
| Property | Value |
| Sheath color: | white |
| Outer diameter approx.: | 6.90 mm |
| Dielectric: | Polyethylene, foamed (Foam PE) |
| Outer conductor form: | Foil + braid |
| Characteristic impedance: | 75 Ohm |
| Inner conductor diameter: | 1.1 mm |
| UV-resistant: | yes |
| Sheath material: | Polyvinyl chloride (PVC) |
| Outer conductor diameter: | 6.9 mm |
| Inner conductor material: | copper |
| Inner conductor class: | Class 1 = single-wire |
| Outer conductor material: | copper |
| Reinforcement: | no |
| Permissible external cable temperature during assembly/handling: | -25 to 55 °C |
| Permissible external cable temperature after assembly without vibration: | -40 to 70 °C |
| Halogen-free in accordance with EN 60754-1/2: | yes |
| Min. permissible bending radius, flexible use with forced guidance: | 70 mm |
| Inner conductor surface: | bare |
| Outer conductor surface: | tinned |
| Number of shielding layers: | 3 |
| Specification of sheath material: | other |
| Fire behavior class according to EN 13501-6: | B2ca |
| Smoke development class according to EN 13501-6: | s1a |
| Drip behavior class according to EN 13501-6: | d0 |
| Acid development class according to EN 13501-6: | a1 |
| Min. permissible bending radius, flexible use/free movement: | 45 mm |
| Min. permissible bending radius, stationary use/fixed installation: | 35 mm |
| Laying in the ground: | no |
Features
Sheath material
Polyvinyl chloride (PVC)
Outer diameter approx.
6.90 mm
Minimal order
250 meters
Manufacturer
HAN
21510042
GTIN
4021121548062
Coat color
White
UV-resistant
Yes
