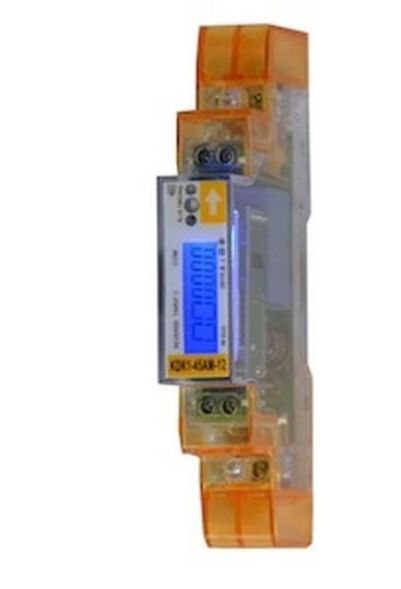

KDK DIN rail AC meter, - Voltage: 230V, - Current range: 5(45)A, - Accuracy class: B, - 5.2 digit LCD display, blue backlit, - Active and reactive energy recording, - Measurement of supply and consumption (2 directions), in two tariffs, - with S0 pulse generator according to DIN 43864, pulse rate: 2,000 pulses/kWh on delivery, - adjustable from 0.01 to 10,000 pulses/KWh via IR interface, - with backstop, - Energy quality features: U, I, f, P, S, cos phi, - Housing 1 TE wide for mounting on a mounting rail according to DIN EN 60715.2001-9, - with MID declaration of conformity according to module B + D, - packed in individual boxes, - programming software with IR probe holder optionally available at Order no. 500105 available. ,
| Property | Value |
| Width in division units: | 1 |
| Calibrated: | yes |
| Pole type: | 1-phase |
| Meter type: | electronic |
| Display type: | digital |
| Mounting type: | REG |
| Accuracy class: | B |
| Maximum current (Imax): | 45 A |
| Nominal voltage (Un) NL: | 230 V |
| Pulse rate: | 2000 Imp/kWh (kvarh) |
| Protection class (IP): | IP50 |
| Frequency: | 50 Hz |
| Tariff version: | Single tariff |
| Energy type: | Active and reactive power |
| Nominal current (In): | 5 A |
| Design: | Direct measurement |
| Measurement type load profile: | no |
| EDL40 signature: | no |
| With lock code: | no |
| Pulse type: | S0 |
| Number of digits: | 5.2 |
| Suitable for: | Purchase/delivery |
| Backstop: | yes |
| Approval: | Measuring Instruments Directive |
| Pulse output: | electrical |
Features
Maximum current (Imax)
45 A
Accuracy class
B
HAB
5/45A Prof. Series MID 1TE
Manufacturer
HAN
460545PRO
GTIN
4260148834394
Version
Direct measurement
Width in pitch units
1
Frequency
50Hz
Suitable for
Purchase/Delivery
Mounting type
REG
Nominal current (In)
5A
IP protection)
IP50
Permit
Measuring Instruments Directive
